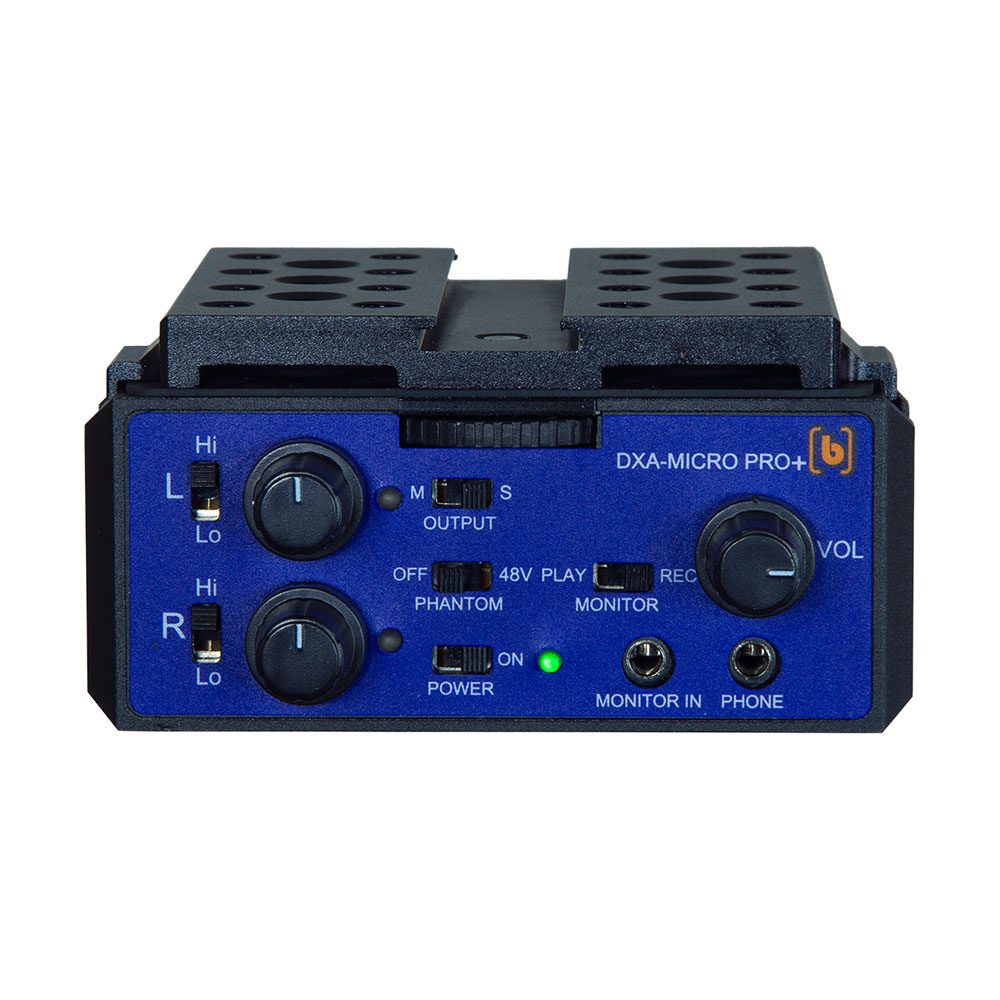

Beachtek DXA-Micro Pro+ Hi-Def Camera Audio Adapter

The DXA-MICRO PRO+ gives you all the features you need to record high quality audio directly to your camera from virtually any source, no syncing required. Superb operation and ease of use make capturing pro audio a snap. The compact size makes it ideal for use with the latest mirrorless cameras.

We took our popular DXA-MICRO PRO and added even more of the features you asked for.

Our new DXA-MICRO PRO+ now includes these New Features:

• Built-in LiPo battery that will power the unit for up to 10 hours
• Micro USB power jack for charging and external power
• Removeable Cheese Plate to easily mount accessories
• Optional BRM-2 Baseplate Accessory to add rod support

Features:

• Trim Control
• Versatile Mounting Options
• Headphone Support
• 1x XLR Input
• 1x Stereo Mini-Jack Input
• Built-in LiPo Battery
• Good/Over LED Indicators
• Low-Noise Preamplifier
• Mounting Shoes
• 2x Mono Mini-Jack Inputs
• Cheese Plate
• Bracketing

Easily Connect External Microphones

Attach a wide variety of audio gear including wireless systems, camera mounted mics as well as professional handheld and boom microphones

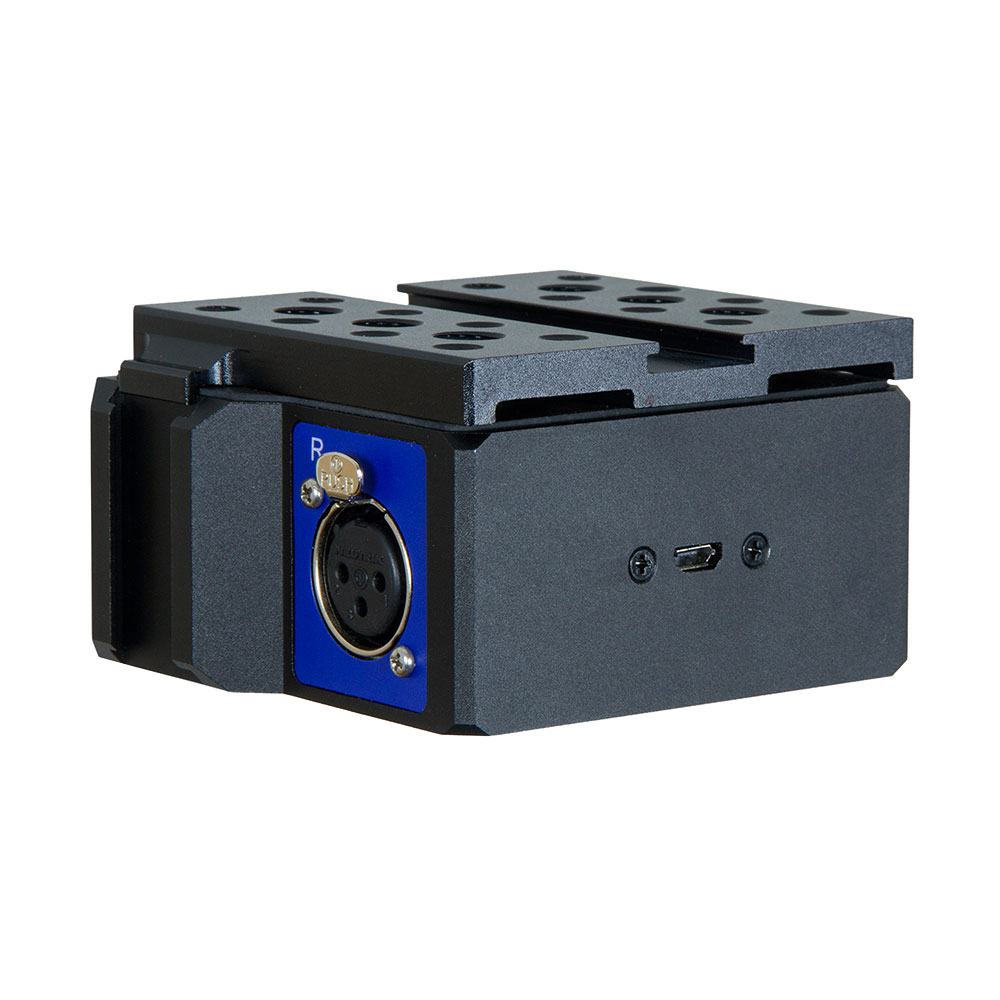

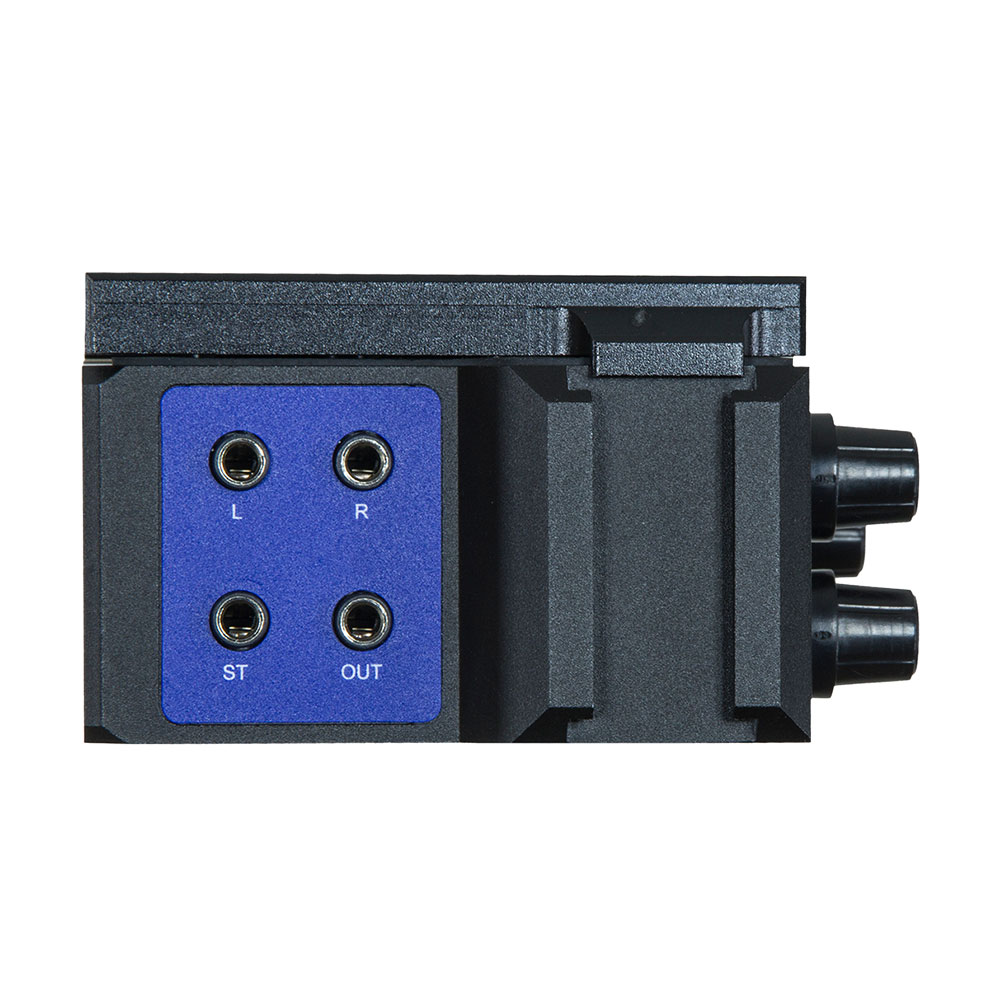

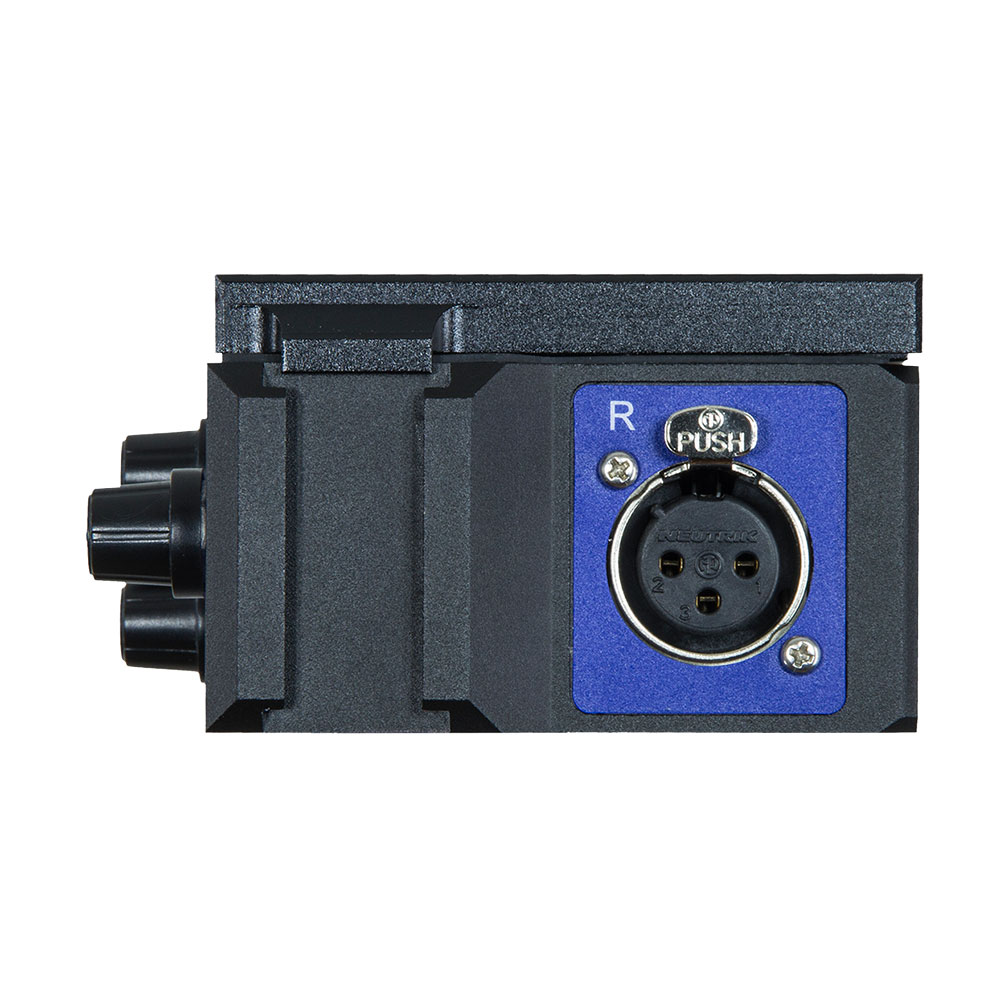

Features a built-in XLR connector with phantom power for connecting any pro mic as well as two 3.5 mm mono and one 3.5 mm stereo mini-jacks with plug-in power for connecting any camera mounted mic such as the popular Rode VideoMics. You can also easily connect a wireless to either the XLR or mini-jack inputs. Connect two audio sources at a time for two-channel recording. Each channel can easily be independently adjusted for the optimum recording level ? even while recording. The DXA-MICRO PRO gives you the ability to connect whatever microphones work best for your situation

Ultra Performance

Powerful preamplifiers for clean audio with plenty of punch

Powerful low-noise preamplifiers with dual gain settings provide a strong, clear signal to the camera. This allows you to dramatically reduce the camera gain which effectively replaces the relatively noisy camera preamplifiers with the much cleaner preamplifiers in the adapter for hiss free audio. This is the key to dramatically increasing the signal-to-noise ratio while still being able to record audio directly to the camera. This eliminates having to use a separate digital audio recorder to capture quality audio.

Audio Bracketing

Setup a second channel for backup

A very useful feature allows you to use audio bracketing when using a single mono microphone to have a backup channel that is recorded at a lower level. This gives you a safety track in case the primary channel gets distorted from an overly hot input.

Removeable Cheese Plate

Modular design for lots of versatility

The removable Cheese Plate has a built-in shoe slot plus several threaded ?? and 3/8? mounting holes to easily add accessories to the top of your camera. Each side of the chassis also has additional built-in sturdy mounting shoes which is ideal for mounting wireless microphones. The brass mounting foot allows the unit to attach to the camera shoe so it is up and out of the way of the camera battery drawer. Our optional V-CLIK makes it even easier to quickly and securely click-on and click-off anything from lights, microphones, monitors and more.

Transform Your Camera

Add accessories for a cinematic look

Give your camera that cinematic look and feel with the optional BRM-2 Baseplate Accessory to easily add a matte box, follow focus or other rod mounted devices to transform your camera into a truly impressive performing and looking rig. Simply mounts to the bottom of the adapter.  Find out more on our BRM-2 Baseplate Accessory page.

Impressive Run Times

Up to ten hours of operation per charge

No more having to waste money on buying replacement batteries. Built-in high capacity LiPo battery for up to ten hours of operation when phantom power is not being used. Check battery level at a glance with Green/Yellow/Red status indicator. You can also power the device externally via the Micro USB port from any commonly available USB battery for unlimited run times.

Virtually Indestructible

Reliability you can count on

Tough, extruded aluminum chassis is virtually destructible with rock solid electronics you can rely on. Not even a two-ton truck rolling over it will damage it. Works under pressure ? just like you do!
