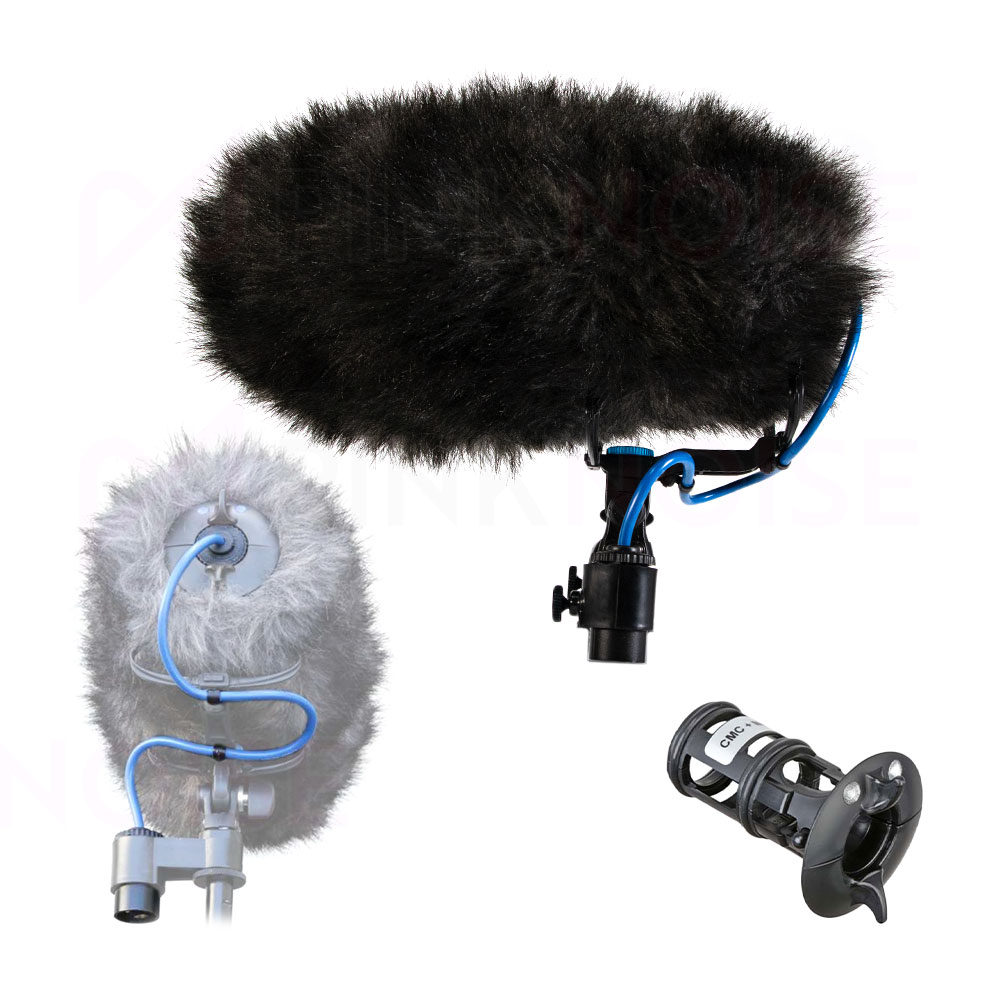

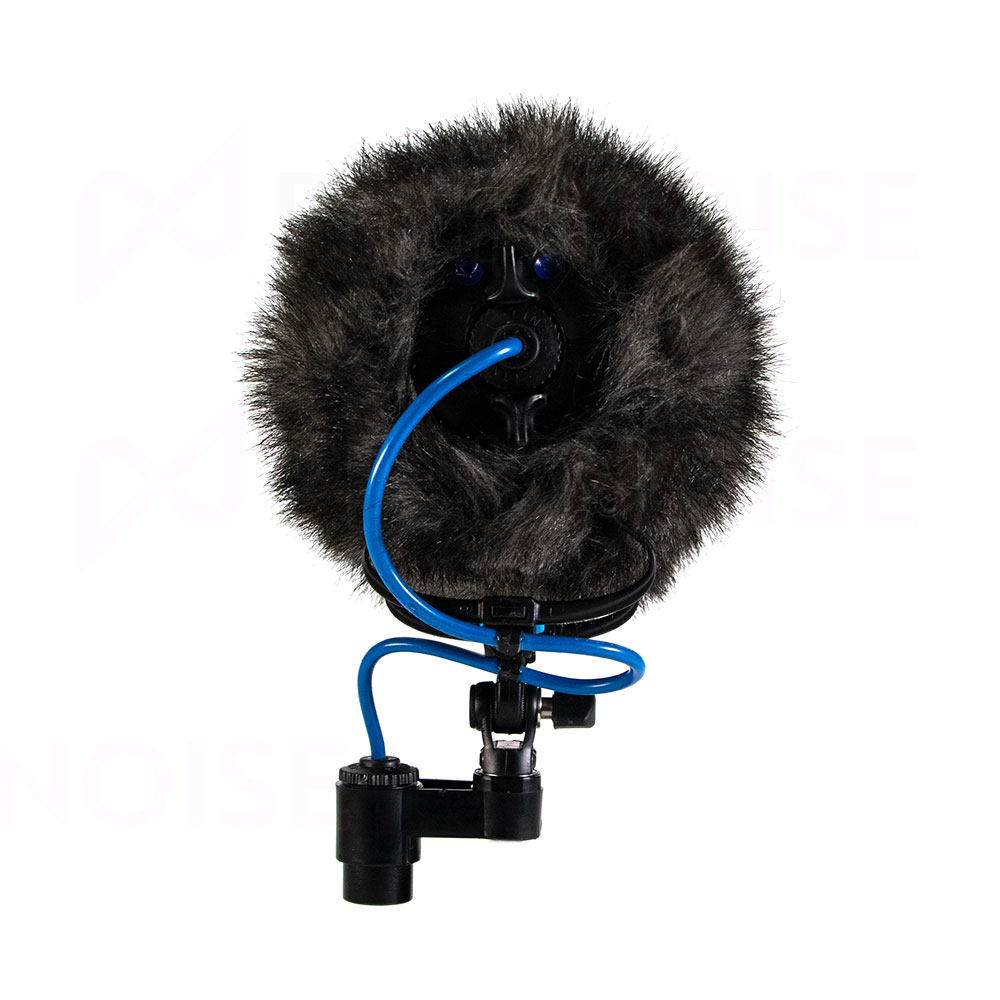

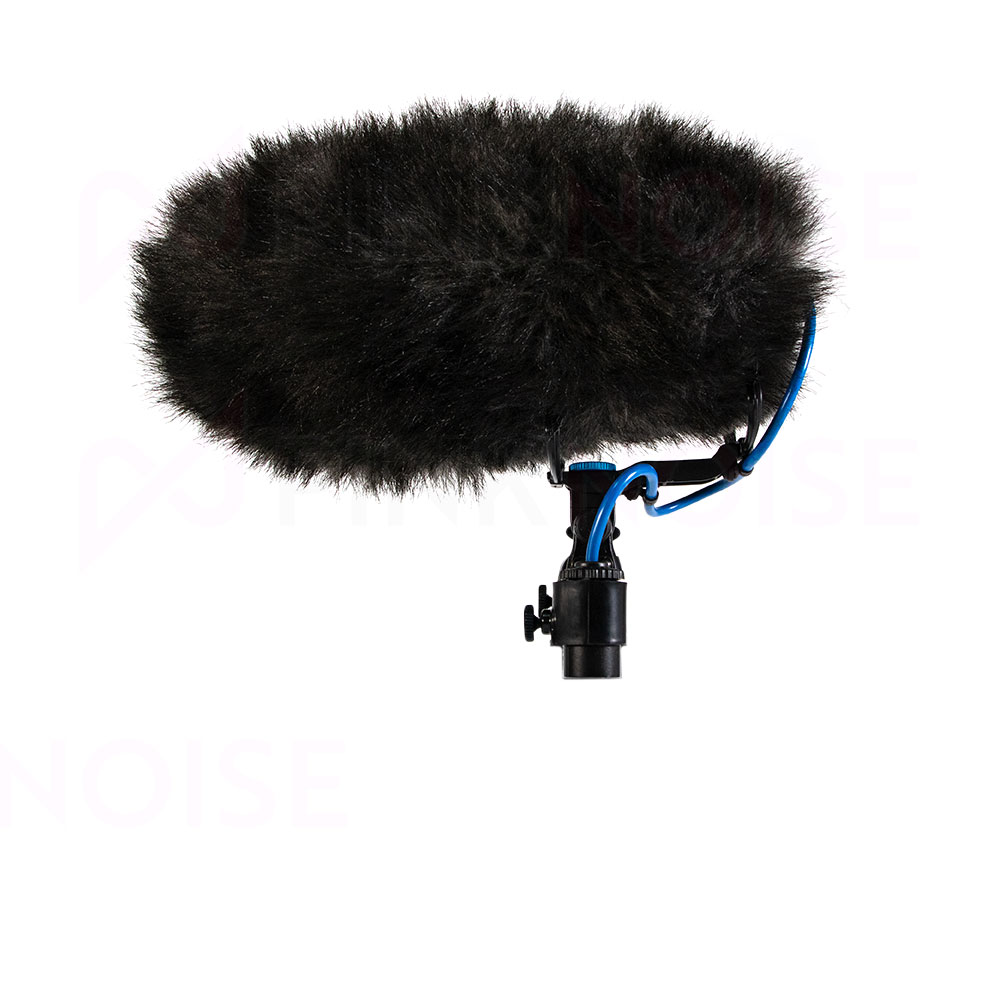

Cinela COSI Large (21cm) Modular Windshield
The new COSI from Cinela features an in-built suspension and windshield combo. Designed for indoor / outdoor use, straight out the box!
Large (21cm) cage windshield for a max microphone length of 15cm
Select from microphone holder available:
Model | Compatible Microphones | Product Description |
---|---|---|
19 |
DPA4017C |
Long cage 19mm holder Long cable |
20 | Schoeps CMC | Long cage 20/19mm holder Long cable |
21 | MiniCMIT | Long cage 22mm holder Long cable |
8060 | MKH8060 |
Long cage |
8060-MZF |
MKH8060 |
Long cage |
CMS50 | Sanken CMS-50 | Long cage 22mm holder XLR5 cable |
MKH40/50 | Sennheiser MKH40 & MKH50 | Long cage |

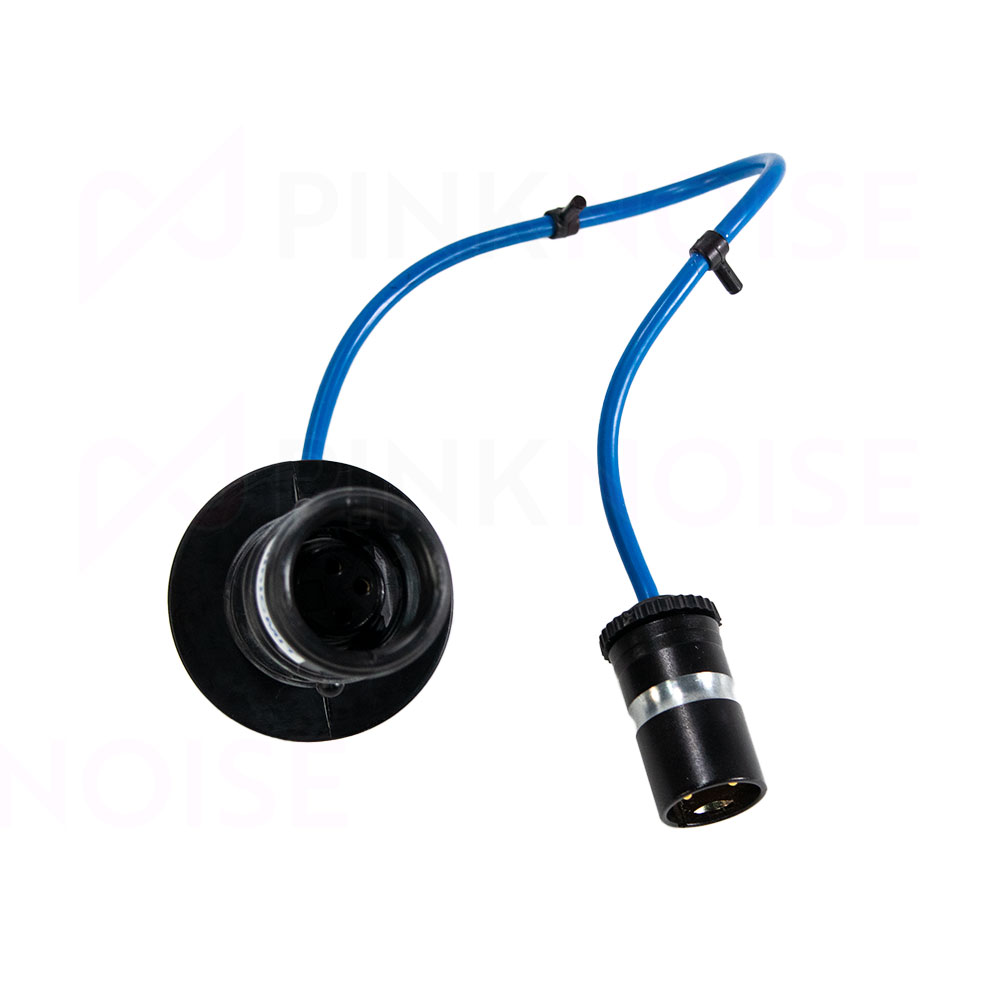

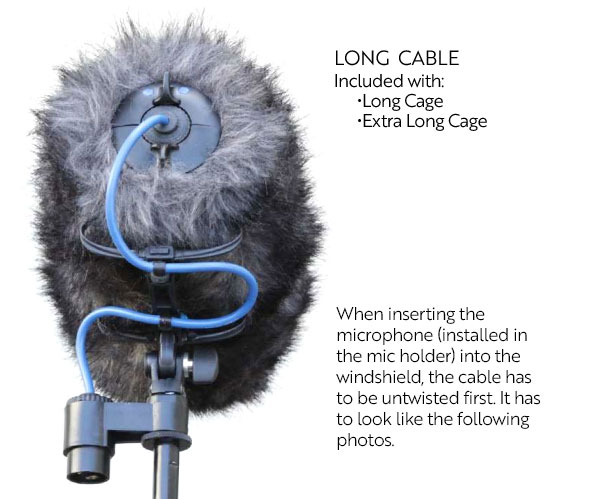

Cable Twisting
Advice for Boom Swivel and Camera Adapters Fixation
Long Cage: Swivel has to be fixed in the FRONT fixation point. Camera Adapter in the REAR one
Note: Fur (medium pile length) is NOT removable. It has no other fabric or layer under it. Very good compromise for indoor/outdoor use.
Rumble Filtering
As any other suspension/windshield, COSI needs the use of a good rumble filter (Very low end handling noise). Typically 50/70 Hz with a +18dB/oct slope (3rd order filter)
Many mixers/recorders only offers +12dB/oct filters (2nd order). Then it may be a little compromise. +6dB/oct filters are AVOIDED (1st order).
Many microphones are very rich in the Low End (MKH8000 or DPA with C preamp). These ones need a high slope filter.
Schoeps MiniCMIT offers a very convenient in-built 60Hz +24dB/oct filter (4th order) ! Definitely the best against handling rumbles ! Absolutely no need for any other filter ! Best choice for "uncertain" inputs (cameras, DSLR).
Sennheiser 8060 can be fitted with the special high slope MZF filter, (70Hz +18dB/oct), Ref: CU0335 Schoeps CMC1U: Best advice: use the tiny CUT60 filter (60Hz, 24 dB/oct)
