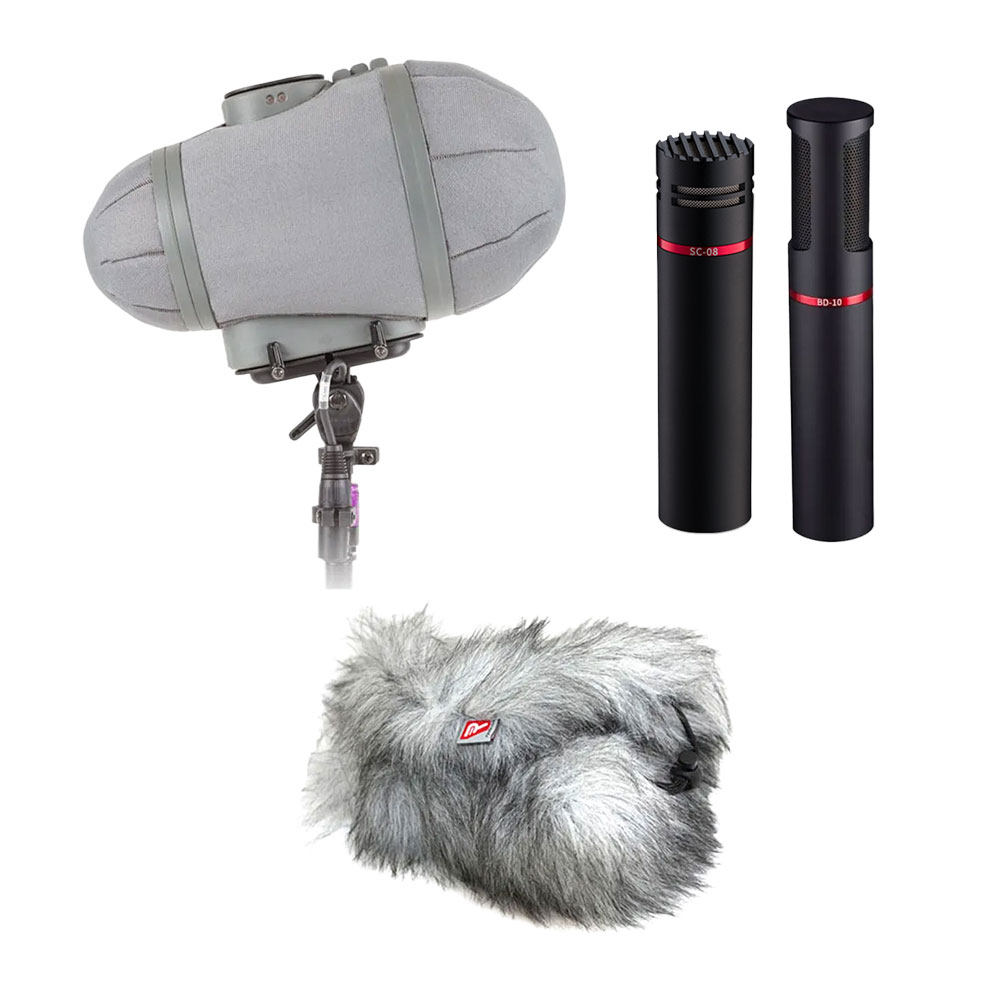

Rycote Mic Cyclone MS Kit
Included in this Kit:
- Rycote SC-08 Super Cardioid Microphone
- Rycote BD-10 Bidirectional Figure of 8 Microphone
- Rycote Cyclone Stereo MS Windshield Kit
- Rycote Cyclone Windjammer - Small
Rycote SC-08 Super Cardioid Microphone
The Rycote SC-08 is a supercardioid pencil condenser microphone designed for a range of applications in studio and field recording. The SC-08 microphones provide directionality with a virtually flat frequency response from 70Hz-20KHz, moderately dropping off below 60Hz. The mics are built on Rycote's low self-noise preamp design and capsules which offer a consistent sonic signature that mixes well when cut together with other Rycote microphones in the range.
Key Features:
- Capsule
- Professional broadcast quality and individually fine-tuned back electret capsule.
- Virtually flat frequency response from 70Hz to 20KHz.
- Preamp
- Compact design
- Ultra low noise circuitry.
- Sophisticated RF shielding.
- Low power consumption.
- Connector
- Gold-plated Neutrix XLR connector.
- RF-Protection
- Active in-line filtering.
- Fine-tuned mechanical RF shielding.
- Thoroughly tested against digital wireless systems and walkie talkies.
- Materials
- Preamp made from non-corrosive machined brass - low impedence to ensure best possible and longest lasting RF shielding.
- Capsule made from lightweight machined aluminium.
Rycote BD-10 Bidirectional Figure of 8 Microphone
Microphone
The Rycote BD-10 is a Bidirectional (Figure of 8) condenser Microphone designed mainly for M/S stereo and ambient recording as well as dual dialogue. Perfect for use with the SC-08, CA-08 or HC-15 for a complete Rycote M/S Stereo or DM/S stereo solutions.
The BD-10 maintains our signature low self-noise, it has been manufactured with the precision and quality that our range of microphones has become renowned for. Designed with the same attention to detail, it blends seamlessly into the existing family with the same tonal quality expected from the entire Rycote microphone range.
Key Features:
- Capsule
- Bidirectional condenser microphone.
- Consistent acoustic timbre with other Rycote mics.
- High rejection of lateral sounds.
- Preamp
- Compact design.
- Ultra-low noise circuitry.
- Sophisticated RF shielding.
- Low power consumption.
- Connector
- Gold-plated Neutrik XLR connections.
- RF-protection
- Active in-line filtering.
- Fine-tuned mechanical RF shielding.
- Thoroughly tested against digital wireless systems and walkie talkies.
- Materials
- Preamp made from non-corrosive machined brass ‐ low impedence to ensure best possible and longest lasting RF shielding.
- Aluminum Interference tube.
- Non-reflective finish.
Rycote Cyclone Stereo MS Windshield Kit
The new Rycote Stereo Cyclone range features a comprehensive selection of professional windshield kits, designed for the popular stereo techniques, such as X/Y, Mid-Side and Double Mid-Side. As well as models designed for Single Mic and Ambisonic mic applications.
Each model has been individually designed to perfectly compliment specific, popular stereo microphone combinations. Whether it's for production sound, broadcast, audio for gaming or wildlife recording ‐ if you use stereo recording to create directionality, perspective, space, atmosphere and realism ‐ there's a Stereo Cyclone model that's perfect for you!
Unique design? individually hand-built.
The Cyclone range represents the pinnacle of wind and shock isolation available for audio professionals. By successfully addressing the design challenges presented by the introduction of multiple microphones, we are now able to offer the stunning performance of Cyclone for stereo microphone applications.
Our unique design approach has enabled us to keep overall size as compact as possible ‐ so most Stereo Cyclone models feature our Small or Medium Cyclone basket sizes.
Each and every Stereo Cyclone windshield is individually hand-built in our factory in Stroud. This very specialised manufacturing process is carried-out by a highly-skilled Rycote technician, and takes many hours to complete.
A sleek new Connbox design.
Specific to each stereo configuration.
Designed specifically for internal cable routing, isolation and vibration reduction, we took our original Connbox and redesigned it for stereo and multichannel microphone configurations.
Each Connbox has been uniquely built for a specific mic setup. Every wire and connector has been precisely measured to offer maximum performance.
This completely effective and ready-to-use solution to connection problems means you don't have to worry ‐ just plug in your microphones!
Outstanding mic shock-isolation.
Rycote uses its industry-leading Lyre® microphone suspension to reduce the bulk of shock and handling noise. Stereo Cyclone also features the Rycote Floating Basket Suspension* (patent Pending): an innovative design that prevents natural resonances and vibrations from bypassing the main suspension and radiating from the structure of the basket itself (an effect known as 'acoustic re-radiation').
Stereo Cyclone takes the Lyre principle and incorporates it into the portions of the suspension that connect directly to the basket; the entire structure 'floats', isolating problem internal vibrations originating from boom poles and other sources.
Stereo configurations are particularly susceptible to the effects of acoustic re-radiation, since more microphones point at the overall surface of the basket: that's why we made extra sure the Floating Basket Suspension was incorporated. The result is a windshield with superb vibration isolation.
Acoustically transparent.
Like our existing Cyclone range, Stereo Cyclone features an open-cell structure consisting of curved contours and no straight or parallel surfaces, which greatly reduces room-tone effects inherent in conventional tubular windshield designs.
The aerodynamic, asymmetric basket design and our unique, acoustically transparent 3D-Tex® material provide enormous benefits in terms of surface turbulence and acoustic impedance.
Industry-leading wind protection.
The unique design of Cyclone shifts the overall bulk to the basket front. This aerodynamically efficient asymmetric basket covered with 3D-Tex material provides enormous benefits in terms of surface turbulence and acoustic impedance, resulting in wind-noise reduction comparable to the combined modular-style windshield / fur cover performance. In truly extreme weather conditions, an optional Cyclone Windjammer can be used to deliver wind-noise reduction that far exceeds any other windshield system available today.
- 3D Tex® Material: 3D-Tex® material provides enormous benefits in terms of surface turbulence and acoustic impedance.
- Magnetic Z-Locking System: Magnetic Z-Locking System that can be opened and closed in the blink of an eye ‐ using just one hand.
- Multi Suspension: Cyclone takes the Lyre® microphone suspension and incorporates it in a Floating Basket Suspension.
From microphone windshield to suspension in the blink of an eye.
Imagine a windshield that can be removed from or attached to the suspension in an instant using just one hand ‐ allowing audio professionals to capture the best possible audio at any moment ‐ in any environment. This is the unique benefit of Rycote's Z-Locking System. Reassembly is automatic, and components magnetically snap into perfect alignment.
- Superb acoustic transparency: The Windshield combines superb acoustic transparency with an equal effectiveness in protecting against wind noise.
- Open shell structure: Open shell structure, curved contours and no straight or parallel surfaces.
- Reduced handling noise: Innovative technique provides vibration isolation between basket and pole.
Consistent performance with low maintenance.
Location sound mixers require equipment that will not only withstand extreme conditions, but also maintain consistent performance. Maintenance is often a time-consuming, yet necessary evil.
3D-Tex was developed for both outstanding performance and ease of maintenance. Dust it off after mild use or rinse and air dry after heavy use to maintain outstanding, transparent and consistent performance for years of faithful use.
- Extreme weather recording: For extreme 'weather warning' conditions an optional Windjammer allows previously impossible recordings.
- Lyre® technology: Cyclone uses Lyre® microphone suspension to reduce the bulk of shock and handling noise.
- Reduced room tone effects: Reduced room-tone effects that characterise conventional tubular designs.
Rycote Cyclone Windjammer - Small
The Windjammer first introduced by Rycote is a high quality synthetic fur-cover, which provides the highest possible protection against extreme wind-noise.
Key Features:
- Specially designed for the purpose - Rycote's Windjammer® give the most effective wind-noise protection available.
- Secure and snug fitting, using a draw-string and toggle.
- First introduced and invented by Rycote in 1987, we are the original makers of first-class Windjammer
The Windjammer first introduced by Rycote is a high quality synthetic fur-cover, which provides the highest possible protection against extreme wind-noise.
When using a Windjammer fitted over a Cyclone Windshield up to 60 dB of wind-noise attenuation can be achieved, producing excellent standard audio recordings.
The Windjammer is made from materials which are specially designed and manufactured for the purpose, and as a result has virtually no adverse effect on High-Frequency. To be totally effective it is important that the pile of the Windjammer remains in prime condition, so each is supplied with a fold flat hairbrush for ongoing maintenance.
