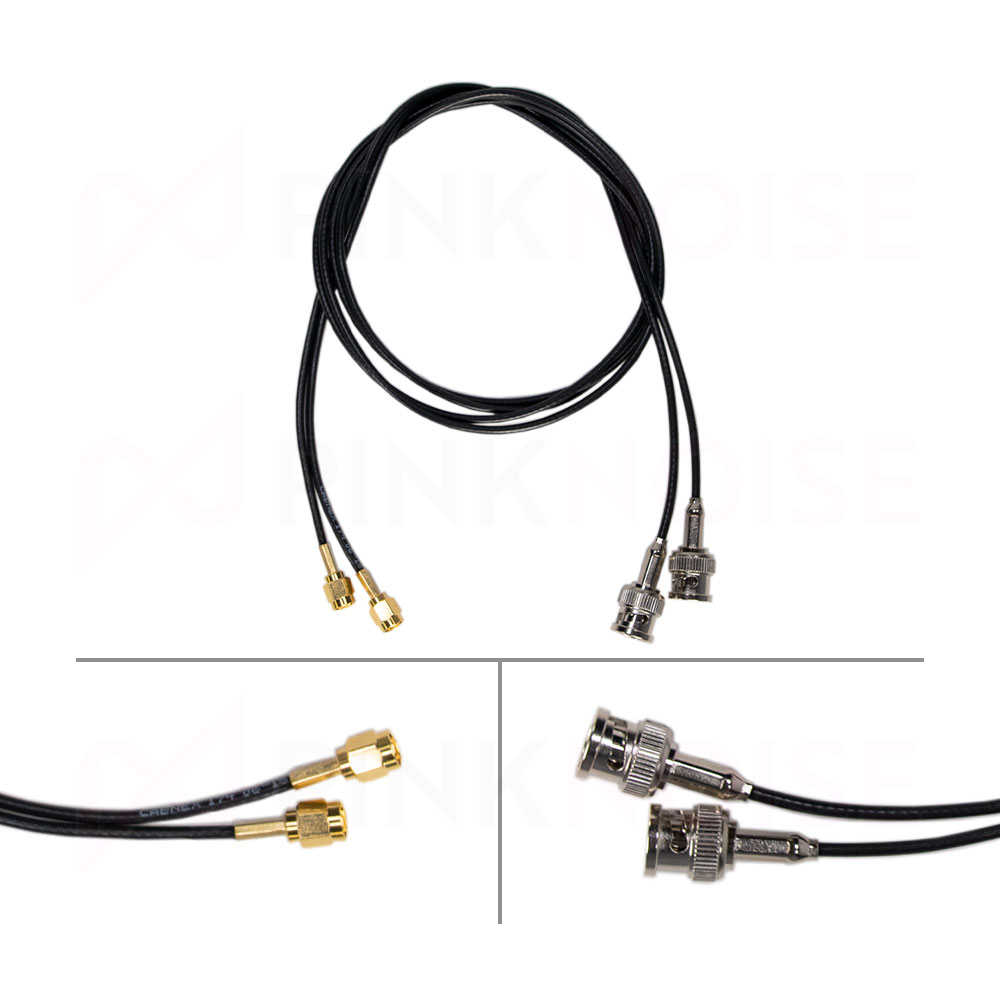

Pinknoise Custom BNC to SMA - Pair (1m, 3m, 5m)
High quality custom cables fitted with Male BNC to Male SMA. Typically used to feed a receiver aerial output into a different antenna system, for example the RF Venue Diversity Dipole Antenna. Cable type is RG174.
Available Lengths
- 50cm
- 1m
- 3m
- 5m
Available Connectors
- BNC Straight to SMA Straight
- BNC Straight to SMA Right Angled
Cable Signal Loss Table
RF Level Attenuation along the cable length dB @700MHz (RG-174 Cable)
Length (M) | Signal Loss (dB) | Efficiency (%) |
0.5 | 0.4 | 92 |
1 | 0.8 | 84.6 |
3 | 2.3 | 59.9 |
5 | 3.8 | 42.4 |
10 | 7.5 | 18 |
