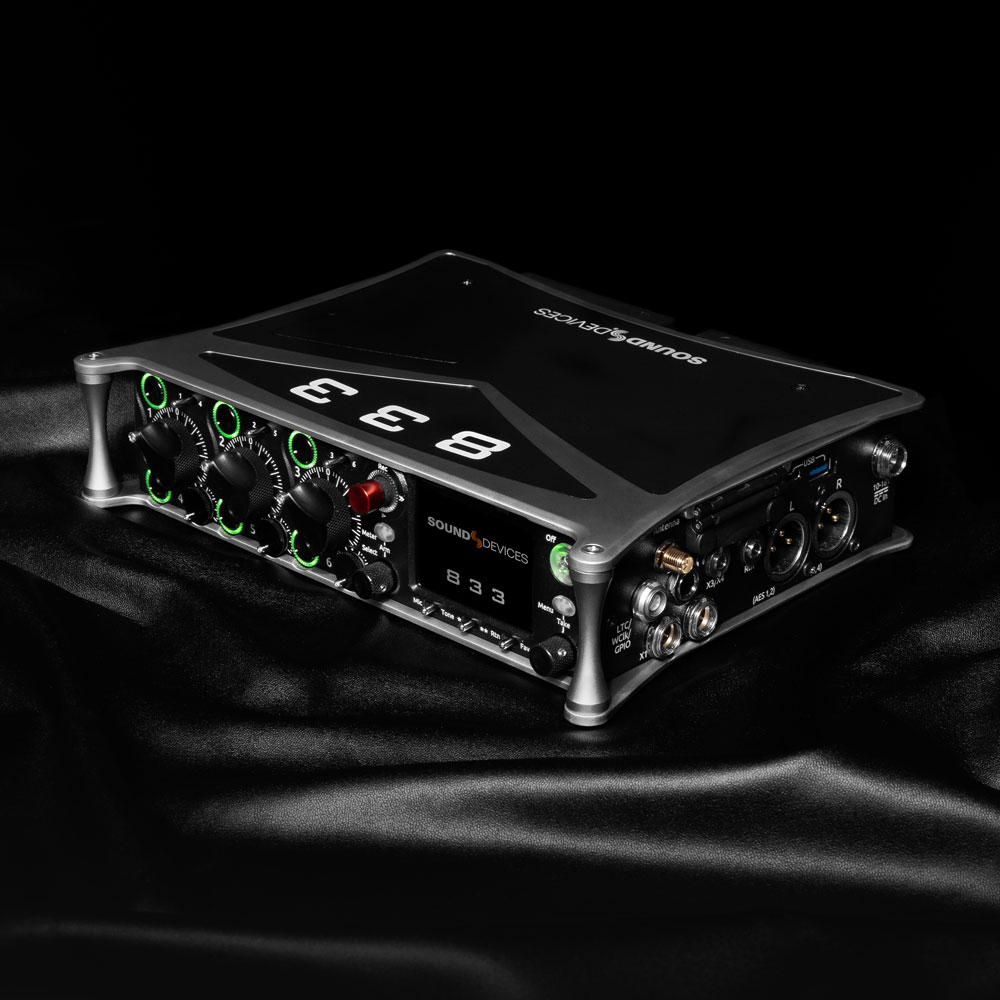

Freq. Response |
10 Hz to 80 kHz ± 0.5 dB (192 kHz sample rate, re 1 kHz) |
|---|
THD + Noise |
0.005% max (1 kHz, 22 Hz–22 kHz BW, trim @20, fader @ 0, -10 dBu in) |
|---|
Equivalent Input Noise |
-131 dBV (-129 dBu) max
(A-weighting, 76 dB gain, 150 ohm source impedance) |
|---|
Processing Engine |
Highly extensible, full FPGA-based audio processing, 3 FPGAs
Six-way ARM multiprocessor system
64-bit audio processing precision |
|---|
Inputs |
Mic/Line inputs: 6 total, all fully featured; 3 on full-size XLR, 3 on TA3
Mic-level inputs: (XLR, TA3): Class-A, discrete differential long-tail pair, 4k ohm input impedance
Line-level inputs: (XLR, TA3,): active-balanced, 4k ohm input impedance
48V phantom: full 10mA to all 6 inputs simultaneously
AES3 or AES42 available on XLR input 1
AES42: +10 V, 250 mA available, mode-1, auto-ASRC
Aux (3.5 mm/10-pin): unbalanced 2-channel, 4k ohm input impedance
Com Rtn (TA3, 3.5mm) balanced, 1-channel, 8k ohm input impedance
External Slate Mic (TA5): balanced, 8k ohm input impedance, menu-selectable 12 V phantom |
|---|
Maximum Input Level |
Mic: +8 dBu (2.0 Vrms)
Line: +28 dBu (19.5 Vrms)
Rtn A, B, C: +18 dBu (6.2 Vrms)
Com Rtn 1, 2: +24 dBu (12.3 Vrms)
External Slate Mic: +12 dBu (3.2 Vrms) |
|---|
High-Pass Filters |
Adjustable 10 Hz to 320 Hz, 18 dB/oct. 1st stage analog (beforepreamp), 2nd stage digital. |
|---|
Limiters |
Limiters available at all channels, buses, headphones, for all sample rates
Analog first stage, all subsequent stages digital
Attack time: 1 ms • Release time: adjustable, 50 ms to 1000 ms • Threshold: adjustable, -2 dBFS to -12 dBFS
Selectable ratio: inf:1, 20:1, 18:1, 16:1, 14:1, 12:1, 10:1 |
|---|
Delay |
Channel Adjustable 0-50 ms
Output Adjustable 0-500 ms |
|---|
Maximum Gain |
Trim stage (mic input): 76 dB
Trim stage (line input): 50 dB
Fader stage: 16 dB
Bus stage: 16 dB
Headphone stage: 20 dB
Mic-to-Line: 108 dB
Mic-to-Headphone: 112 dB
TA5 (along with mic input pins) for single connection to headset + mic High output, 4 ohm output impedance, 400 mW + 400 mW at each connector, all individually driven Compatible with headphones of any impedance |
|---|
Outputs |
XLR (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
TA3 (X1/X2) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
3.5mm (X3/X4): unbalanced, stereo, 1.8k ohms |
|---|
Headphone Outputs |
1⁄4”, 3.5 mm
TA5 (along with mic input pins) for single connection to headset + mic
High output, 4 ohm output impedance, 400 mW + 400 mW at each connector, all individually driven
Compatible with headphones of any impedance |
|---|
Maximum Output Level (all into 10k load) |
Line: +20 dBu (7.8 Vrms)
“-10”: +6 dBu (1.5 Vrms)
Mic: -20 dBu (0.078 Vrms)
X3/X4 Out: +6 dBu (1.5 Vrms)
Headphone outputs (1⁄4”, TA-5): +14 dBu (4.0 Vrms) |
|---|
A/D converters |
32-bit, 120 dB, A-weighted dynamic range typical
Sampling rates 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz,96 kHz, 192 kHz |
|---|
Digital Outputs |
AES3 transformer-balanced, in pairs; 1-2 (XLR-L), 3-4 (XLR-R), 110ohm, 2 V p-p, AES and S/PDIF compatible |
|---|
Recording |
Internal 256 GB SSD
Two removable SD Cards
Simultaneous recording to internal SSD and the two SD cards
exFAT formatting
12 tracks (8 iso channels, 4 buses)
Broadcast WAV monophonic and polyphonic file format • 64-bit WAV (RF64) monophonic and polyphonic; support for files > 4 GB |
|---|
Automixing |
Dugan Automixing up to 8 channels on left and right mix bus |
|---|
USB |
USB-C (USB 3.1 type 1) for file transfer of internal SSD, both SD Cards
USB-A host for keyboard, external controller, external USB hubs supported for connecting multiple devices |
|---|
Timecode and Sync |
Modes Supported: Off, Rec Run, Free Run, 24h Run, External,including External Auto-Record and Continuous modes.
Frame Rates: 23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND
Sample/Timecode Accuracy: 0.1 ppm (0.25 frames per 24 hours)
Timecode Input: 20k ohm impedance, 0.3 V - 3.0 V p-p (–17 dBu - +3 dBu)
Timecode Output: 75 ohm impedance, 5 V p-p (+12 dBu)
Word Clock Input: 10k/75 ohm selectable impedance,1-5 V p-p input sensitivity
Word Clock Output: 75 ohm impedance, 5 V p-p output, at SR |
|---|
Remote Control |
USB MIDI Control - 3rd party fader controllers
SD-Remote Android app
USB Keyboard
External Timecode Record Trigger |
|---|
LCD |
320x240, Transflective, excellent sunlight visibility
Larger touchscreen display available via USB-connected SD-Remote app |
|---|
Power |
External: 10-18 V input on locking TA4 connector, pin-4 = (+), pin-1 = (-)

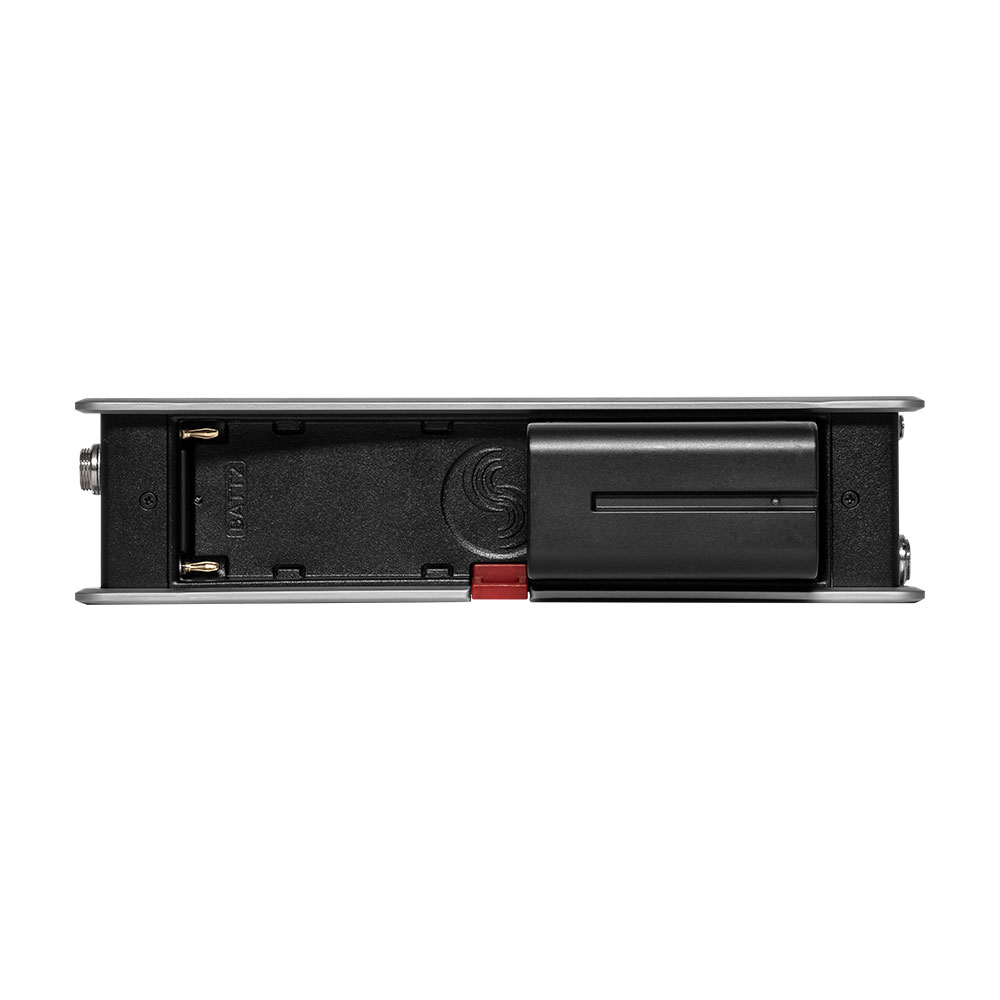

Dual rear-mount Sony-style L-mount batteries with chargers
Idle Current Draw: 875 mA @ 12 V (10.5 W)
Intelligent power-down of unused mic preamps and other internal circuits |
|---|
Environmental |
Operating: -20° C to 60° C, 0 to 90% relative humidity (non-condensing)
Storage: -40° C to 85° C |
|---|
Dimensions (H x W x D) |
5.1 cm x 22 cm x 17 cm; (2.0 in. x 8.7 in. x 6. in) |
|---|
Weight |
2.75 lbs (unpackaged, without batteries)
1.25 kg (unpackaged, without batteries) |
|---|
