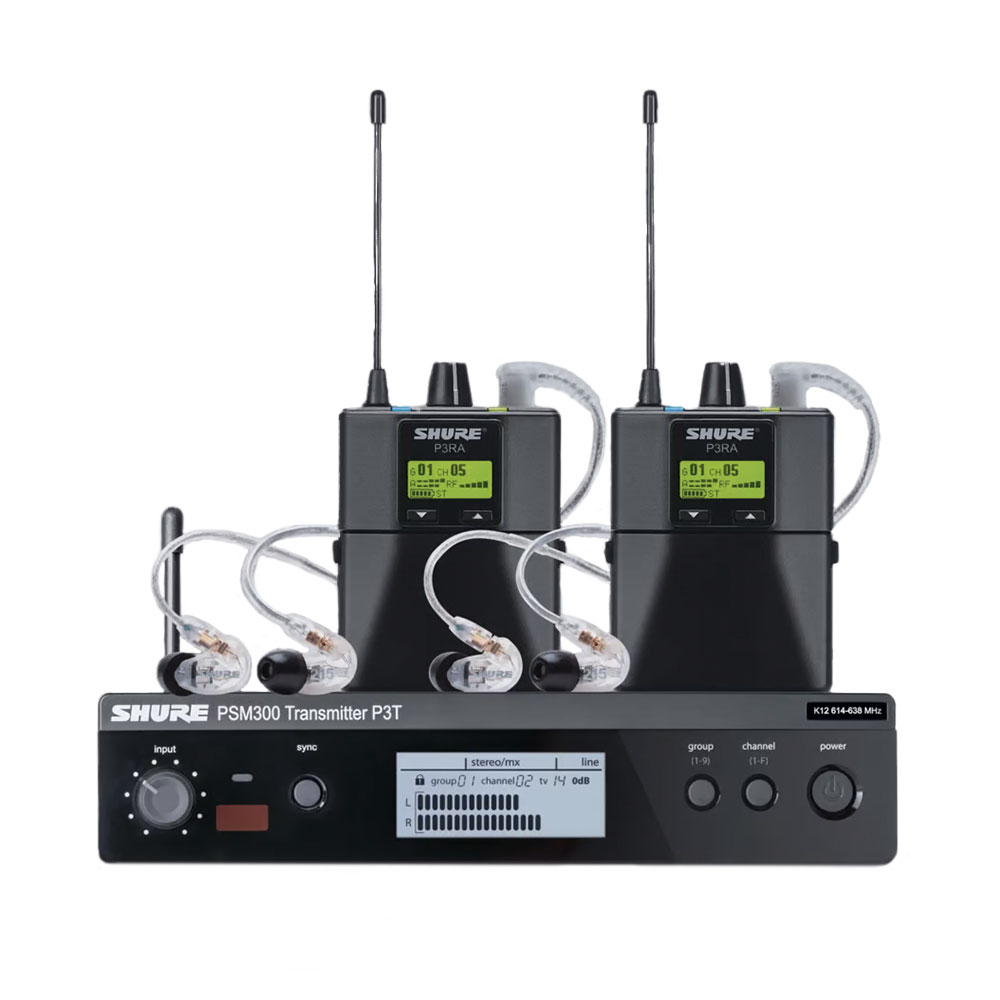

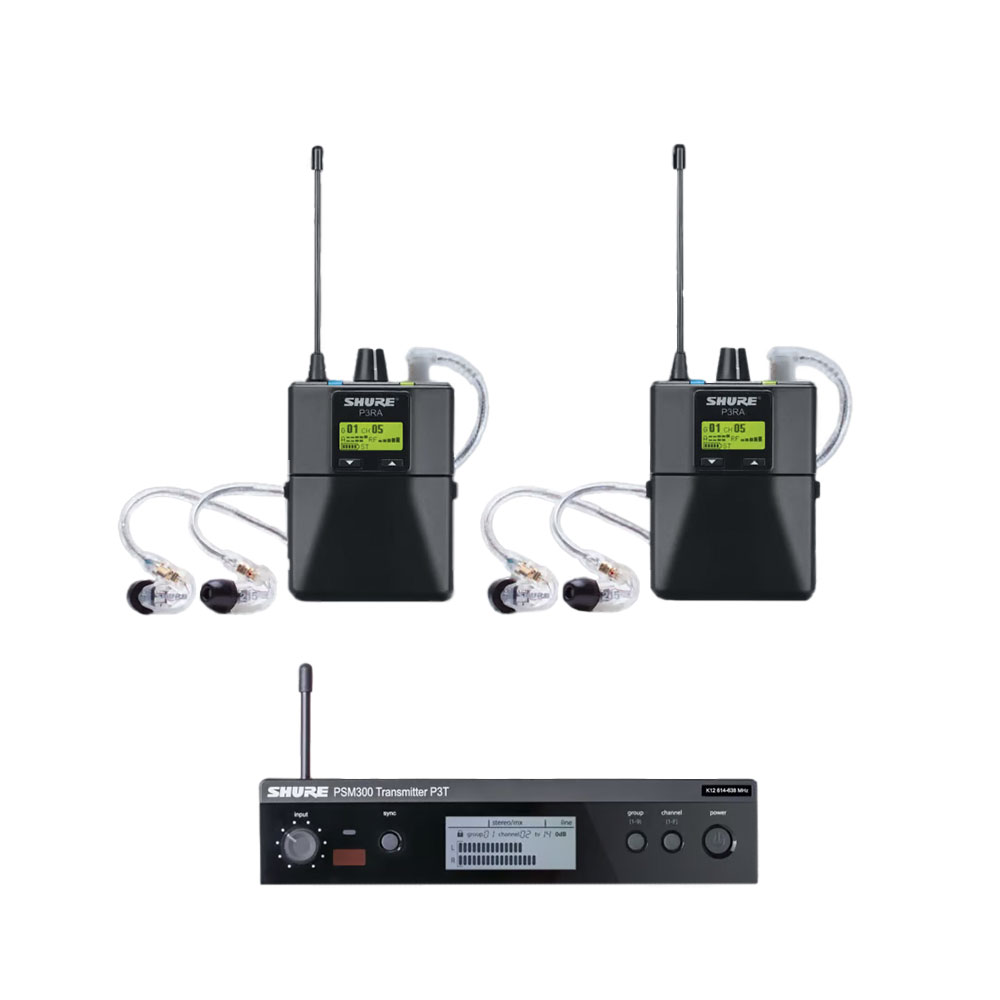

Shure PSM300 Twinpack Pro Wireless System - K3E(606-630 MHz)

The PSM®300 Stereo Personal Monitor System delivers detailed 24-bit digital audio and reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Dependable wireless coverage extends over 300 ft (90 m) of range and eliminates dropouts. Easy to setup and operate, PSM300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume using MixMode® technology or stereo mode to create a personal mix from two channels of audio.

System Features

• Send two channels of audio wirelessly to performers onstage
• 24-bit digital audio provides clear, detailed sound
• Patented Audio Reference Companding sounds more like wired
• Up to 90 dB signal-to-noise ratio
• Exceptionally wide stereo separation
• Solid analog RF connection over a 300 ft (90 m) range
• Create a personal mix from the bodypack with MixMode® technology or stereo mode
• Frequency scan and IR sync quickly finds and assigns a clean channel
• Half-rack, single channel transmitter with included rack mount kit
• P3R bodypack systems available with SE112 Sound Isolating™ Earphones
• P3RA professional bodypack systems available with SE215 Sound Isolating™ Earphones

P3T Wireless Transmitter

Dependable wireless transmission and 24-bit digital audio deliver a superior personal monitoring mix for every performance. Send 2 channels of audio to a bodypack receiver up to 300 feet away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts. The rugged, half rack transmitter features easy front-panel controls including one-touch sync and input level knob to enable quick setup and easy operation. Rear-panel balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units.

• Single channel, half-rack transmitter with included rack mount kit
• Sends a stereo or mono mix wirelessly to performers onstage
• Rock-solid wireless connection to P3R receiver over 300 ft (90 m) range
• One-touch IR sync instantly links transmitter to receiver
• Up to 30 mW output power (region dependent)
• 24 MHz tuning range (region dependent)
• ¼" (6.3 mm) TRS balanced inputs and loop outputs
• High-contrast LCD menu with detailed L/R audio output meters
• Detachable antenna
• External power supply
• Selectable line/aux level

P3RA Professions Wireless Bodypack Reciever

The P3RA is a wireless stereo bodypack receiver for use with the PSM®300 Personal Monitor System.

With detailed 24-bit digital audio and reliable wireless performance, the P3RA bodypack delivers professional personal monitoring to any corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Find a wireless channel easily, using the scan function to automatically select the cleanest frequency available from a wide tuning bandwidth. Adjust the volume and use MixMode® technology or stereo mode to create a personal mix from two channels of audio. EQ and volume limiting further individualize the sound via the high-contrast LCD menu. With a compact and rugged aluminum body, the P3RA ensures a long lifetime of use and easily clips onto a belt or guitar strap. Two standard AA batteries provide up to 6 hours of continuous use. The optional SB900A rechargeable battery (sold separately) extends runtime and allows easy in-unit charging.

• Rugged, all-metal construction
• High-contrast LCD screen with menu-based navigation
• 2-band shelving EQ with high and low boost
• Volume limiter sets the maximum gain level range for the volume knob
• MixMode® technology enables adjustment of two independent monitoring mix levels
• Stereo mode enables adjustment of left/right balance
• Frequency scan and IR sync quickly finds and assigns a clean channel
• 2 AA batteries provide up to 6 hours of continuous use
• Optional Shure SB900A lithium-ion rechargeable battery provides extended runtime
• Power and battery status LED
• 5-segment battery life meter
• Power save mode preserves battery life when earphones are not connected
