Sonosax SX-R4+ Multitrack Recorder Select Output Board

16 track professional portable audio recorder. Based on a high technology design, it has been manufactured to deliver many years of outstanding performances. As with all Sonosax products, the SX-R4+ recorder is built without any compromise in quality, using only the best components available and passes severe quality controls.

Options available:

• XLR-5M Multiple Output Board
• Dante Output Board

Inputs / Outputs

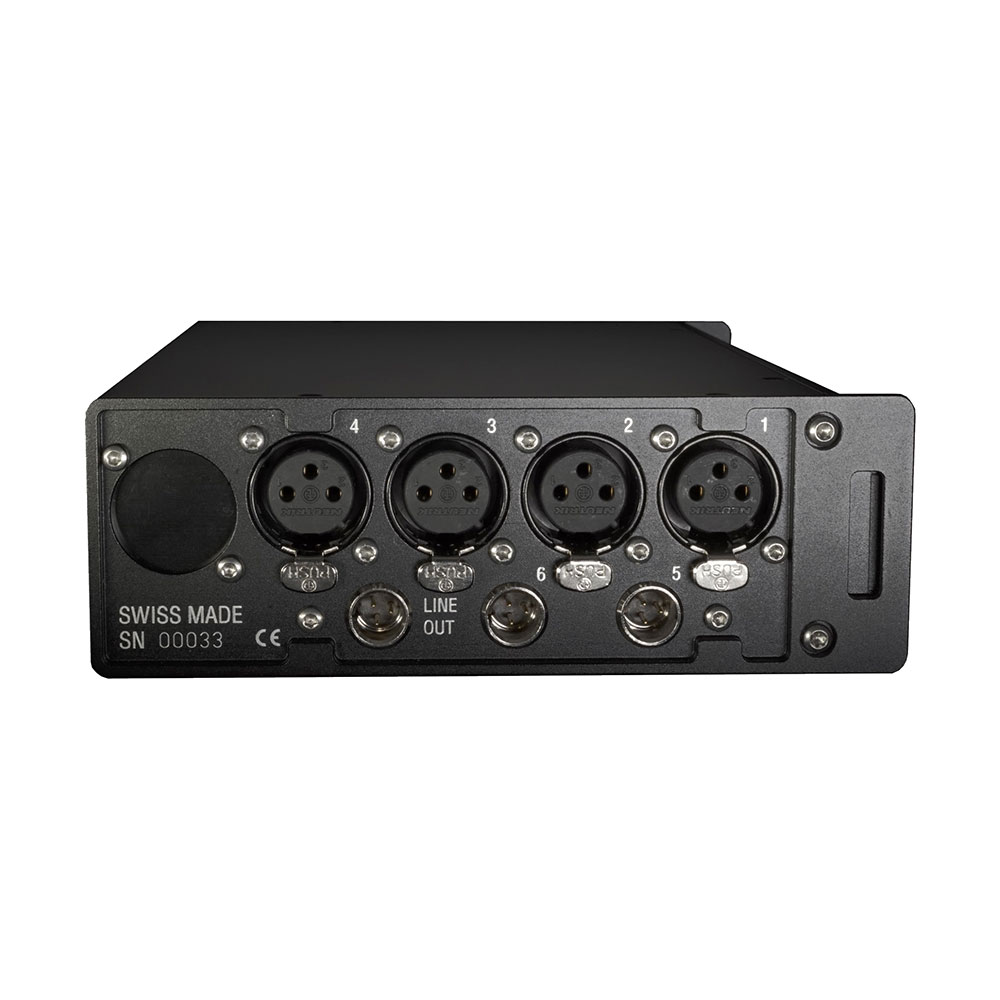

• 4x XLR-3F inputs, individually configurable as:
        -ANALOG: mic/line levels, electronally balanced, with phase reversal, 48V phantom, LF cut and level control on the front panel
        -DIGITAL: transformer balanced AES3 or AES42 with ASRC, phase reversal, LF cut and level control on the front panel
• 2x Line inputs, electronically balanced on TA-3 with level control on the front panel

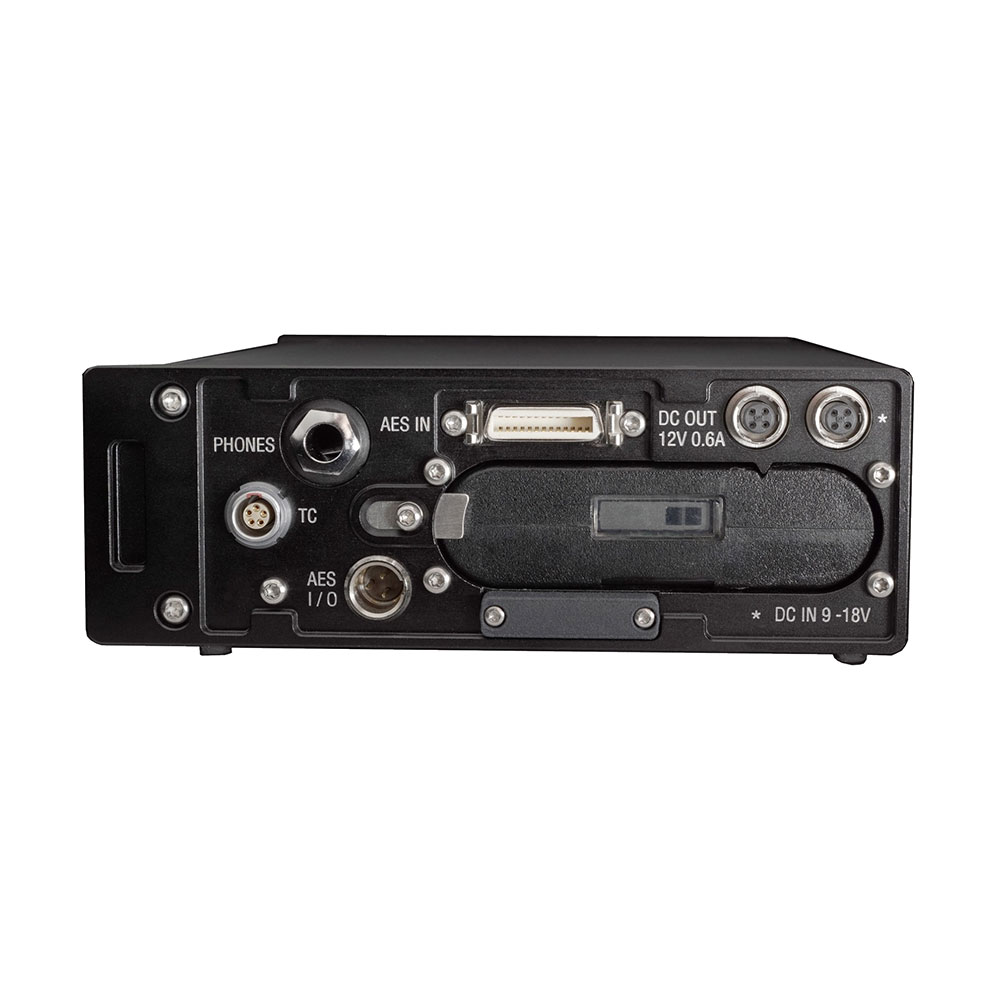

• 4x AES3 balanced inputs on multi-pin connector
• 1x AES3 balanced input with ASRC on TA-3 connnector (shared with AES3 output)
• 2x analog unbalanced line outputs on TA-3
• 1x AES3 balanced output (user independant sampling frequency) on TA-3 connnector (shared with AES3 input)
• Up to 12x Mic inputs when connected to the SONOSAX AD8+

Using the SX-R4+ this module can be freely configured by the user for output either as:

• Two symmertical analog channel (2 mono or 1 stereo)
• Four asymmetrical analog channels
• Four digital channels on 2 AES outputs

Asymmetrical analog and digital AES channels combination is possible (2+2)

Performance

• 132 dB overall dynamic range from analog input to recorded file
• 90kHz overall frequency response @192 kHz recording
• 40 bits processing

Recording capabilities

• up to 16 tracks recording on 2x SD cards (SDHC, SDXC)
• uncompressed BWF with iXML metadata
• 44,1 up to 192 kHz @ 24bits, Pull up/down 0.1% for NTSC world

User Interface

• Touch screen 2.4'' TFT color display
• WiFi dynamic web-app interface

Powering

• Removable 14.4V 50Wh Lithium battery, SMBUS capable
• External DC 9..18V on Hirose 4pins, SMBUS capable, electrically isolated
• 12V regulated decoupled DC output to power peripherals equipments up to 7W
• Intelligent energy management with detailed on-screen information

Timecode

• Accuracy: 0.5 ppm
• Independant in/out on lemo connector
• 23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND

Sennheiser AMBEO Certified

Includes A-B converter for the AMBEO VR Mic, recorder directly outputs the processing-ready B-format. Available with an optional, dedicated 12-pin socket for the VR Mic.

Mechanical

• Machined aluminum housing
• Overall dimension: 200 x 50 x 144.5 mm (7.87'' x 1.96'' x 5.7'')
• Weight: 1.2kg / 2.64lbs with 50Wh battery fitted
