Atomos AtomX / Timecode Systems USO Cables for UltraSync ONE
High quality custom cables. Different connectors to provide timecode to most cameras and recorders
Connection 1 | Signal Flow | Connection 2 | For Which Camera/Recorder |
---|---|---|---|
USO |
BNC (Blue for LTC) | ARRI Amira AJA CION Black Magic 4K URSA Sony F23 / F35 / F5 / F55 / F65 / F7 (with XDCA-FS7 module) Sony HDC2500L / HDWF900R Sony PDW 700 / PMWF3K/RGB / PMW 200 Canon C300 / C500 / XF105 / XF305 Panasonic AG-AF100A |
|
USO |
BNC (Red for Genlock) | ARRI Amira AJA CION Black Magic 4K URSA Sony F23 / F35 / F5 / F55 / F65 / F7 (with XDCA-FS7 module) Sony HDC2500L / HDWF900R Sony PDW 700 / PMWF3K/RGB / PMW 200 Canon C300 / C500 / XF105 / XF305 Panasonic AG-AF100A |
|

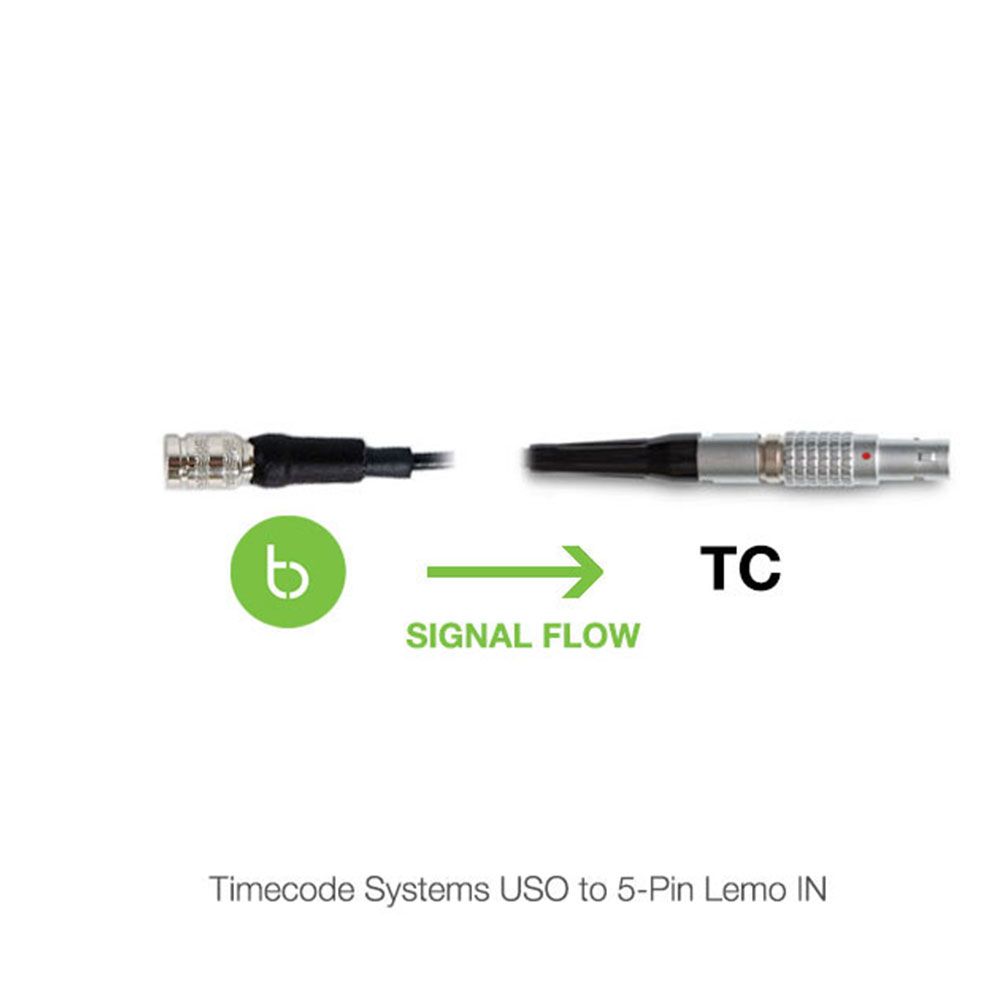

USO | 5-Pin Lemo (Input) | ARRI Alexa RED One RED Weapon (with Pro backplate) RED GENESIS (With DSMC2 REDVOLT Expander) |
|

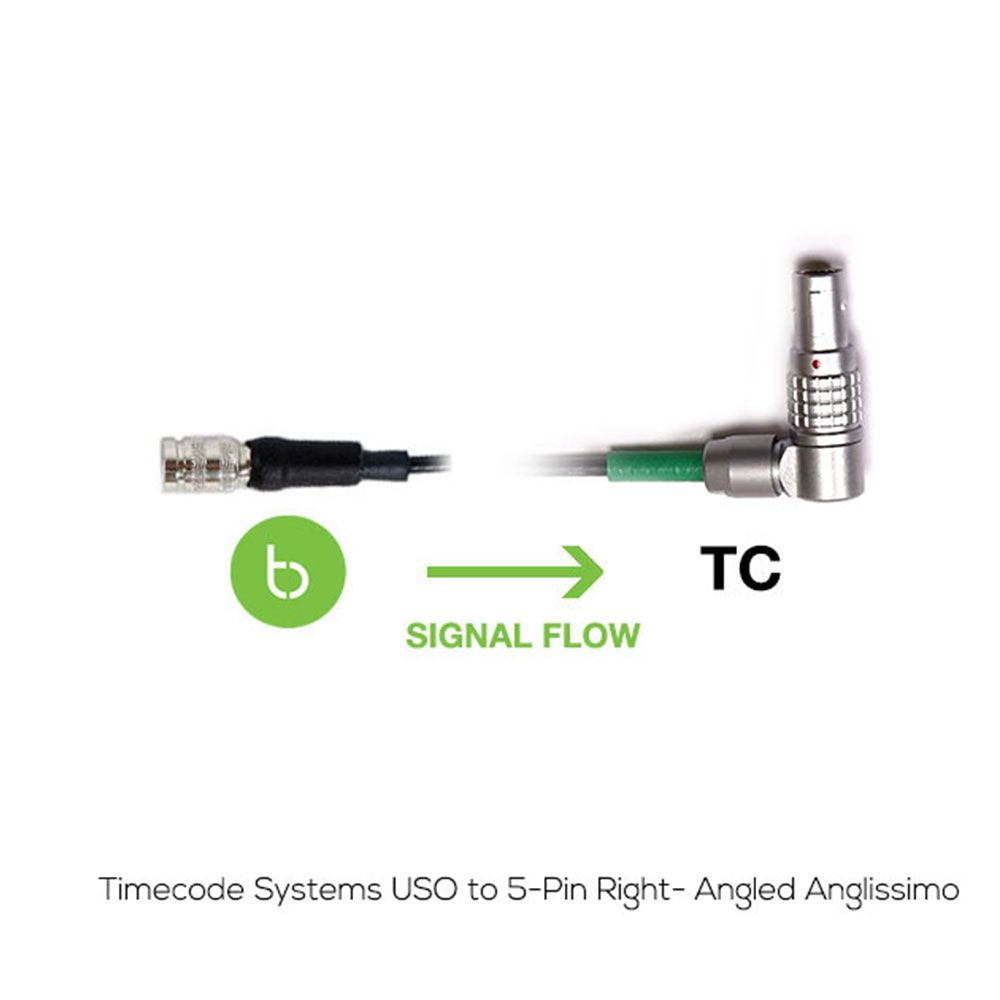

USO | 5-Pin Lemo (Right-Angle Anglissimo) | ARRI Alexa RED One RED Weapon (with Pro backplate) RED GENESIS (With DSMC2 REDVOLT Expander) |
|
5-Pin Lemo (Output) | USO | Cable to feed timecode to the UltraSync ONE from any device that outputs timecode from a 5-pin LEMO port. | |

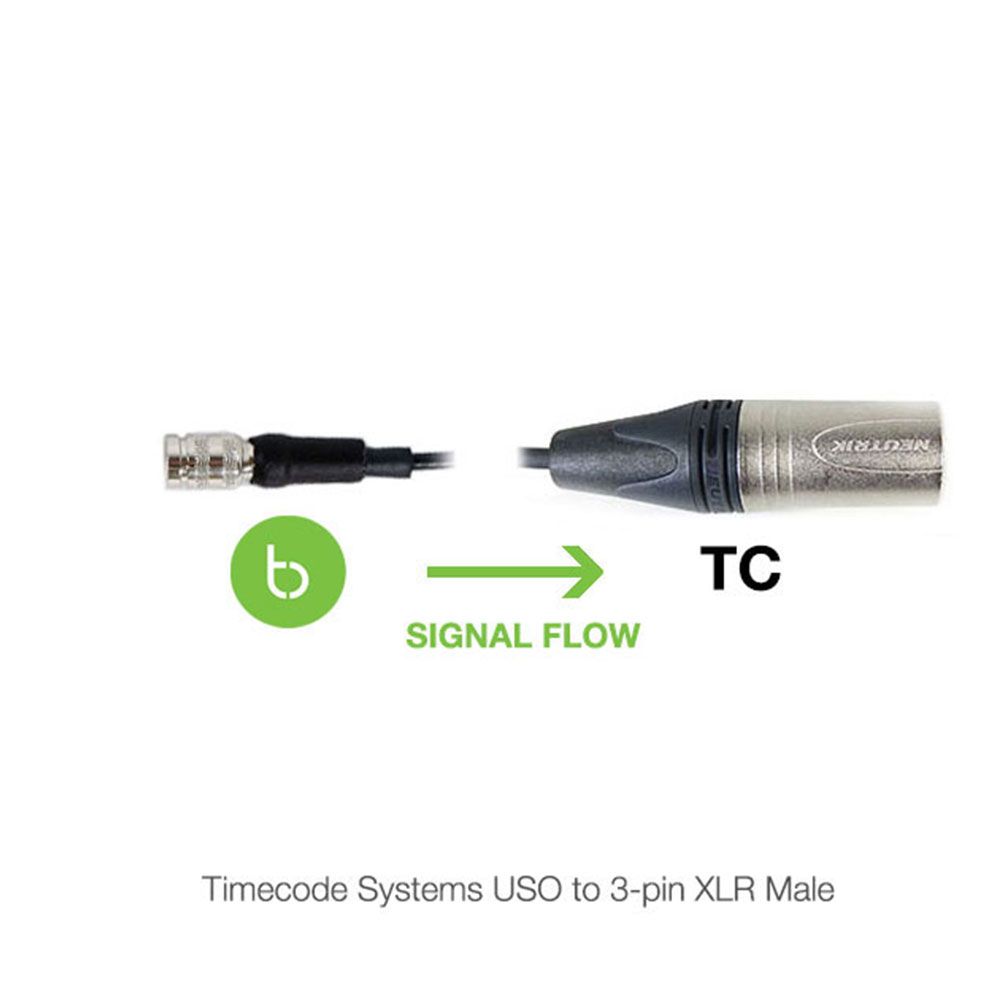

USO | XLRM | Canon C100 / XA10 / XF100 / XF300 Blackmagic Studio Camera Sony EX1 / FS100 / FS700 / FS5 / FS7 (without XDCA-FS7 module) Any device with an XLR input |
|
XLRF | USO | Cable to feed timecode to the UltraSync ONE from any device that uses a 3-pin XLR output. | |
USO | 3.5mm (Right-Angled) | Blackmagic Micro Cinema Camera / Micro Studio Camera 4K / Pocket Cinema Camera Canon 5D / 7D / XA10 Any other device with a 3.5mm TRS input (including DSLR cameras) | |

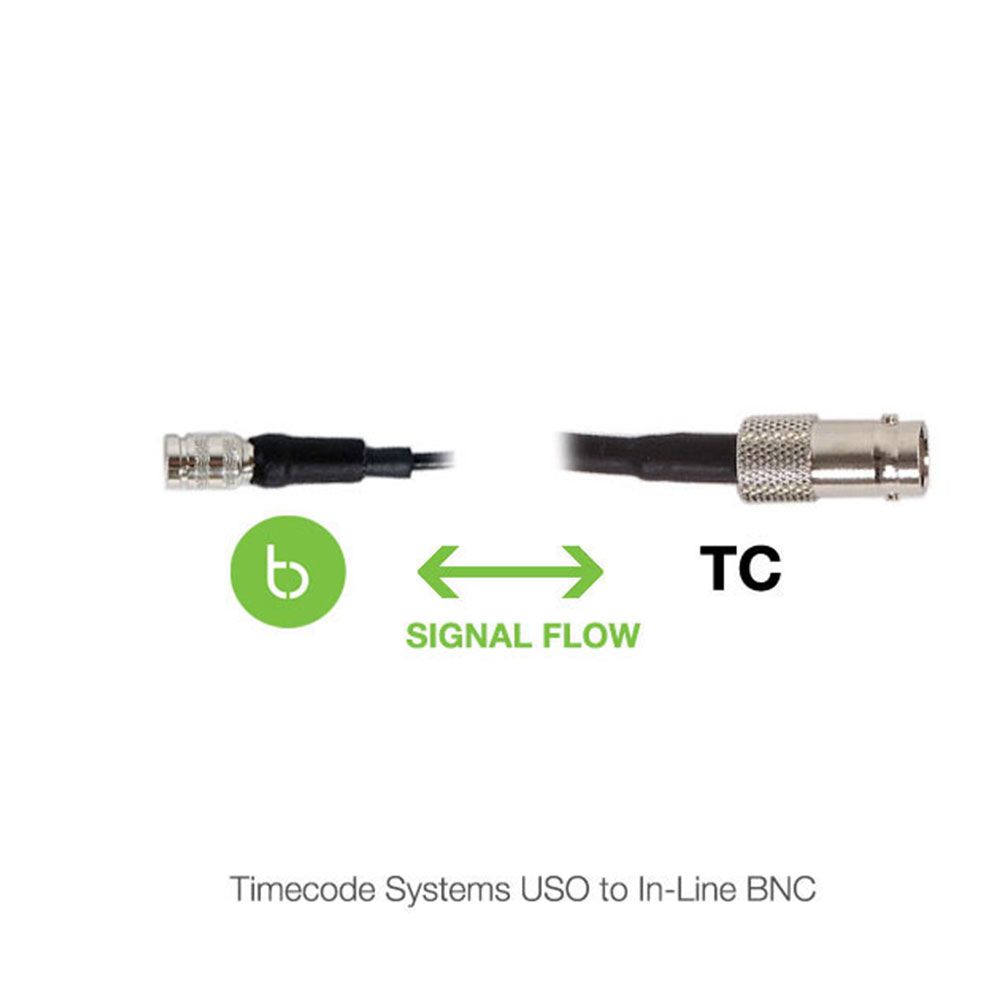

USO | BNC (in-line) | Convert the DIN 1.0/2.3 port on the UltraSync ONE into a BNC port. | |

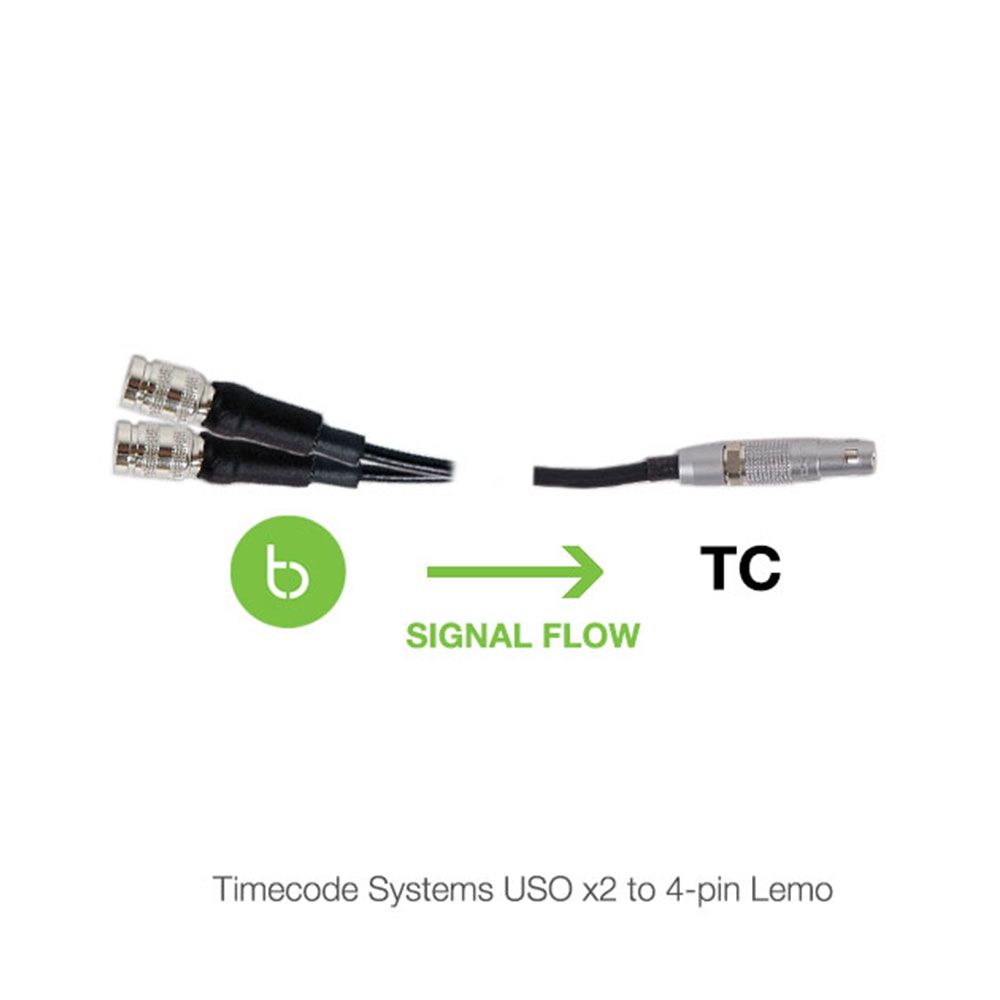

USO x2 | 4-pin Lemo | RED Epic / Dragon / Scarlet RED Weapon (with Standard backplate) GEMINI (with DSMC2 V-Lock Expander or DSMC2 Jetpack-SDI Expander) |
|

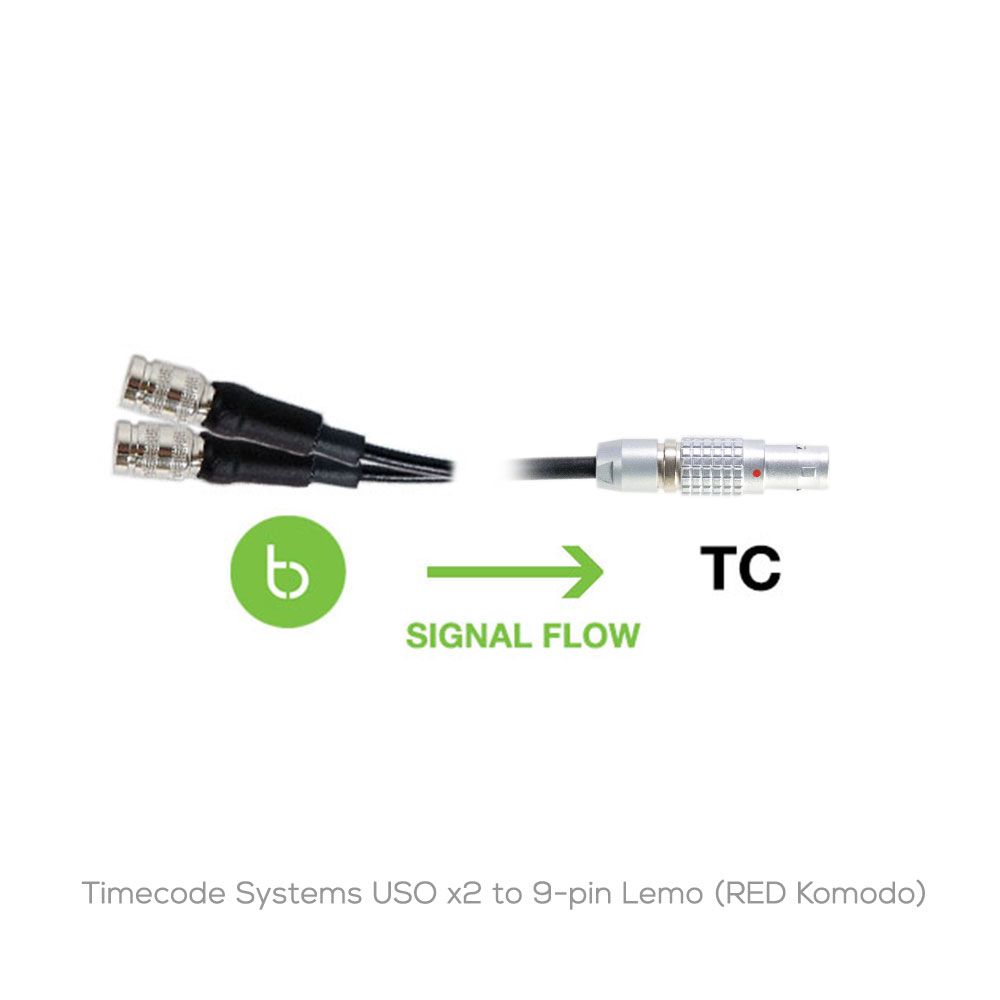

USO x2 | 9-pin Lemo | RED Komodo |
If you do not see your camera or recorder in the list above or are unsure as to which cable you need for your setup, please do not hesitate to contact our sales team for more information.
