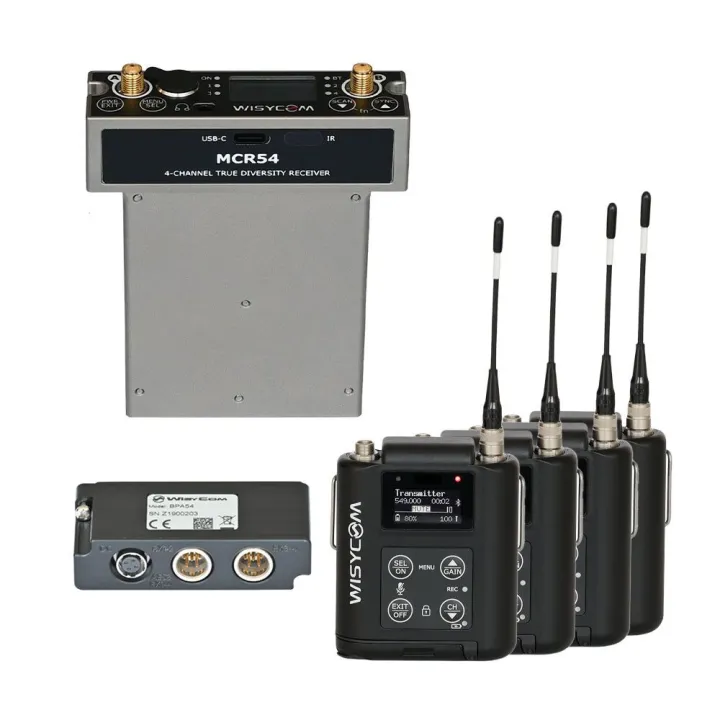

Wisycom MCR54 w/ 4 x MTP60 Transmitters & BPA54 Bottom Plate Quad Kit

This Kit Includes:

• 1x MCR54 4-Channel Multiband True Diversity Receiver
• 4x MTP60 Beltpack Transmitters
• 1 x BPA54 Bottom Plate (1 x 4-Pin Hirose + 2 x TA5-M)
• 1 x Pinknoise Custom Output & Power Cable Set for Wisycom MCR54 (BPA54 Bottom Plate)

Wisycom MCR54 4-Channel Multiband True Diversity Receiver

MCR54 is a camera quadruple true diversity wireless microphone receiver system in a modular stand alone or slot in configuration. It's compatible with most camera's slots and 'multi-slot' mixer accessories.

	Multi-Band RF Tuning Wideband just isn't enough anymore! Upgrade to a Multi-Band system with up 790 MHz tuning range to find your frequency, anywhere in the World.
	High Density with NB Filters With eight internal receiver boards, the MCR54 boasts an unprecedented capacity for range and reliability.
	True-Diversity Reliability With the combination of Narrowband Modulation and Linear transmitters, set your channels every 200kHz with-out intermodulation distortion and get an extra 3dB sensitivity.
	Multi Companding DSP delivers ENC and ENR algorithms for perfect audio in any application with less than 1ms delay ‐ with create and shape presets for the desired sound. It enables the use of third-party transmitters with Wisycom receivers.

Features

• Four channels True Diversity receiver (8 Receiver boards!)
• Exceptional compactness and high robustness
• DSP Analogue & Digital Audio Output (AES3)
• Up to 790 MHz bandwidth in 470/1260 MHz range
• Next Gen Multiband front-end filtering:
  • High Q electronically tunable filter in 470-800 MHz
  • 1st narrowband filter
  • 2nd narrowband filter
• Wideband and Narrowband DSP-FM operation (SW selectable):
  • Narrowband allows more 50% band efficiency
  • Narrowband allows about 3dB extra sensitivity and noise immunity
• Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
• High contrast OLED display
• Automatic scan & transmitter programming through infrared and Bluetooth 5 long range
• DSP based for extreme flexibility and multi-companding operations
• Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)
• Rear antenna connectors and micro audio and power adapter

Bands Available

Wisycom MTP60 Bodypack Transmitter

MTP60 is a pocket transmitter specially designed for professional wireless microphone applications.

Powered with 2 x AA battery (Alkaline, NiMh, Lithium) or MPRLBP lithium battery (5.55 Wh)

Small bodypack with ergonomic rounded edges for comfort in TV, theater, movies and other applications requiring discreet deployment.

Multi-Band RF

The multi-band MTP60 currently has the widest tuning range of any wireless transmitter on the market offering a massive range of frequencies to choose from.

Bluetooth 5 Long Range

Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time

Real Time Positioning

Dedicated hardware for accurate real time positioning and advanced user interface for accessibility assistive gestures.

LINEAR Intermodulation FREE

Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod

Ultrasonic HW Protection

Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers

Embedded Recorder

Simultaneous transmit and audio recording on micro-SD (except in USA)

SW selectable with N Filters

FPGA based signal processing allows easy switching between wide and narrow band operation which, together with 'Linear' mode allows intermod free frequency planning with as little as 200kHz channel spacing

Haptic Engine

An integrated haptic engine that gives tactile feedback with different vibration patterns. This can also be activated by the remote control to discreetly alert users

Features:

• The multi-band MTP60 currently has the widest tuning range of any wireless transmitter on the market (470 to 1075MHz)
• Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
• Dedicated hardware allows accurate real time position monitoring with advanced user interface.
• Advanced linear technology (L20mW) eliminates intermodulation distortion for more robust signal
• Embedded recorder to record directly on the MTP60 memory card and integrated Linear Time Code decoding
• Enhanced robustness against self-interferences and antenna performances thru a proprietary 'intermodulation cancellation' circuit
• An integrated haptic engine that gives tactile feedback with different vibration patterns
• FPGA based signal processing allows easy switching between wide and narrow band operation
• Miniature design with flexible PCB (no connectors) for extended reliability
• New ENS compander for a totally clear sound
• Powering with 2 x AA battery (Alkaline, NiMh, Lithium) or MPRLBP lithium battery (5.55 Wh)
• Bluetooth interface and mobile app allows full control from mobile or tablet
• Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
• Bluetooth 5 Long Range (Class 1, 100mW) with the MRK16 as a bridge allows remote control the MTP60 over hundreds of meters
• Front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
• Max input level 26dBu (15.5 V clipping) to connect directly to mixers and instruments
• 48V phantom power to use wired mic thru the PHA60 accessory
