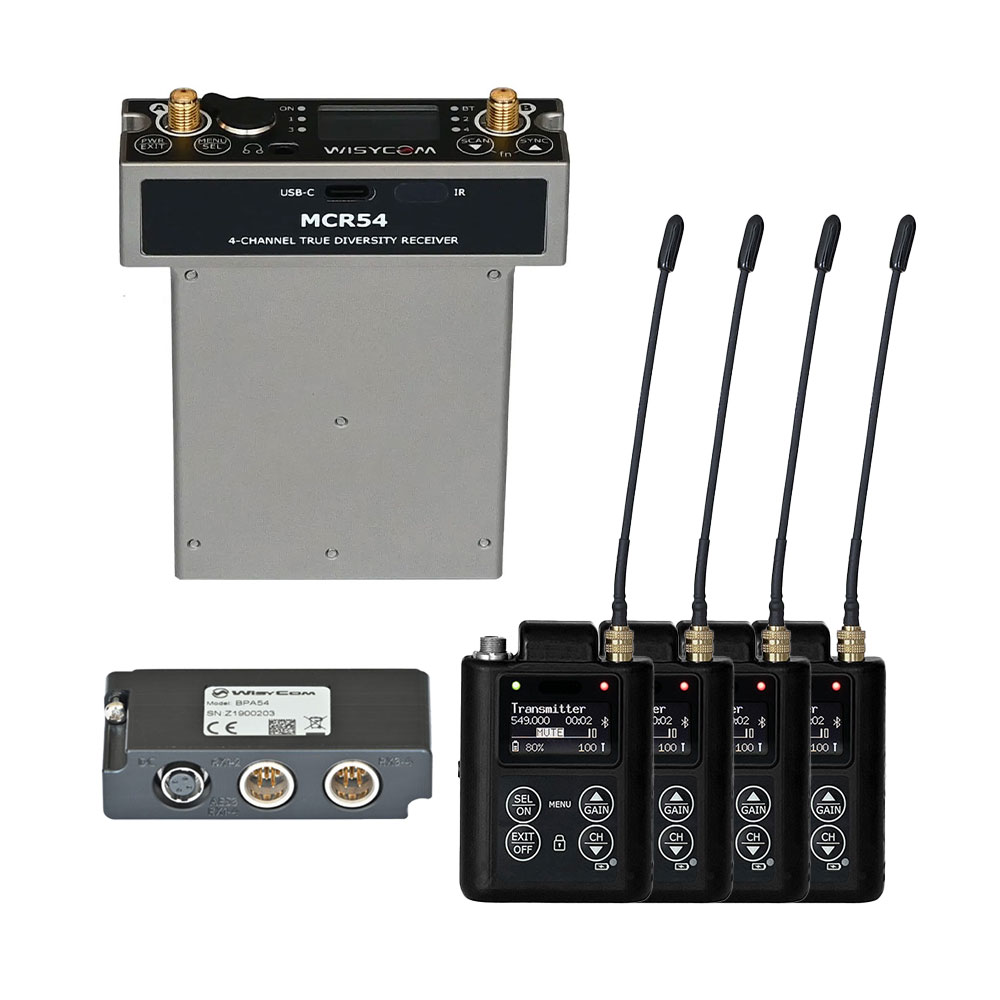

Wisycom MCR54 4-Channel Receiver w/ 4 x MTP61 Miniature Transmitters & BPA54 Bottom Plate Quad Kit

This Kit Includes:

• 1x MCR54 4-Channel Multiband True Diversity Receiver
• 4x MTP61 Miniature Beltpack Transmitters
• 1 x BPA54 Bottom Plate (1 x 4-Pin Hirose + 2 x TA5-M)
• 1 x Pinknoise Custom Output & Power Cable Set for Wisycom MCR54 (BPA54 Bottom Plate)



Wisycom MCR54 4-Channel Multiband True Diversity Receiver

MCR54 is a camera quadruple true diversity wireless microphone receiver system in a modular stand alone or slot in configuration. It?s compatible with most camera?s slots and ?multi-slot? mixer accessories.

	Multi-Band RF Tuning Wideband just isn't enough anymore! Upgrade to a Multi-Band system with up 790 MHz tuning range to find your frequency, anywhere in the World.
	High Density with NB Filters With eight internal receiver boards, the MCR54 boasts an unprecedented capacity for range and reliability.
	True-Diversity Reliability With the combination of Narrowband Modulation and Linear transmitters, set your channels every 200kHz with-out intermodulation distortion and get an extra 3dB sensitivity.
	Multi Companding DSP delivers ENC and ENR algorithms for perfect audio in any application with less than 1ms delay ? with create and shape presets for the desired sound. It enables the use of third-party transmitters with Wisycom receivers

Features

• Four channels True Diversity receiver (8 Receiver boards!)
• Exceptional compactness and high robustness
• DSP Analogue & Digital Audio Output (AES3)
• Up to 790 MHz bandwidth in 470/1260 MHz range

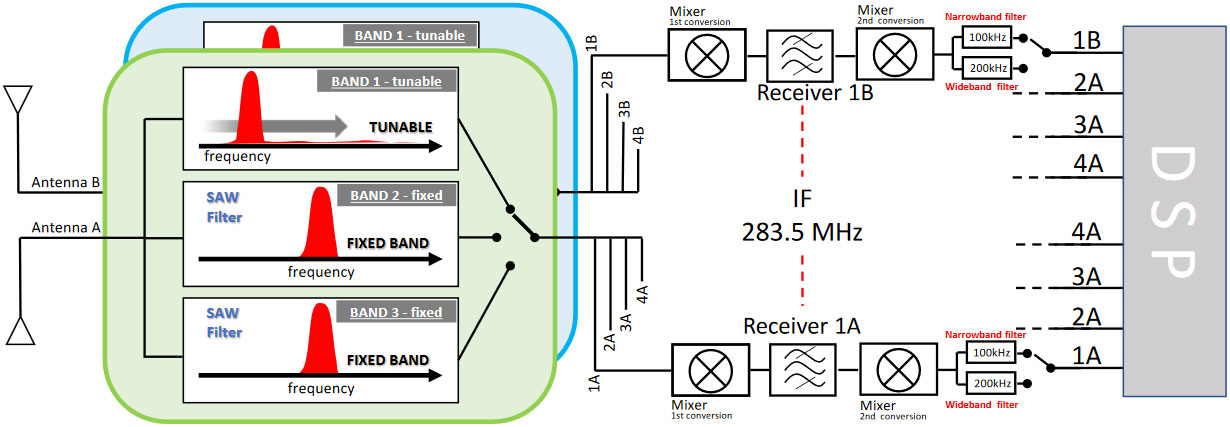

• Next Gen Multiband front-end filtering:
  • High Q electronically tunable filter in 470-800 MHz
  • 1st narrowband filter
  • 2nd narrowband filter
• Wideband and Narrowband DSP-FM operation (SW selectable):
  • Narrowband allows more 50% band efficiency
  • Narrowband allows about 3dB extra sensitivity and noise immunity
• Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
• High contrast OLED display
• Automatic scan & transmitter programming through infrared and Bluetooth 5 long range
• DSP based for extreme flexibility and multi-companding operations
• Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)
• Rear antenna connectors and micro audio and power adapter

Bands Available

Wisycom MTP61 Miniature Bodypack Transmitter

The smallest and lightest multiband bodypack transmitter on the market, the MTP61 has the widest tuning range currently available (470 to 1260MHz). Among the industry?s most powerful transmitters, the compact design of the MTP61 not only makes it comfortable, but also ideal for location sound and theater applications alike.

It is equipped with a Bluetooth module which allows to adjust parameters in real time via mobile device apps.

It offers embedded recorder to record directly on the internal 64 GB micro SD card and an integrated Linear Time Code decoding.

Features

• The multi-band MTP61 currently has the widest tuning range of any wireless transmitter on the market (470 to 1260 MHz)
• Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
• Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod frequency plan
• Embedded recorder to record directly on the internal 64 GB micro SD card and integrated Linear Time Code decoding
• DSP based signal processing allows easy switching between wide and narrow band operation
• ENS compander for a totally clear sound
• Powering with Lithium-ion battery Model CS-BCE10 (Part No. CGA-S008E 3.7V, 1050 mAh, 3.9Wh Cameron Sino)
• Bluetooth interface and mobile app allows full control from mobile or tablet
• Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
• Front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
