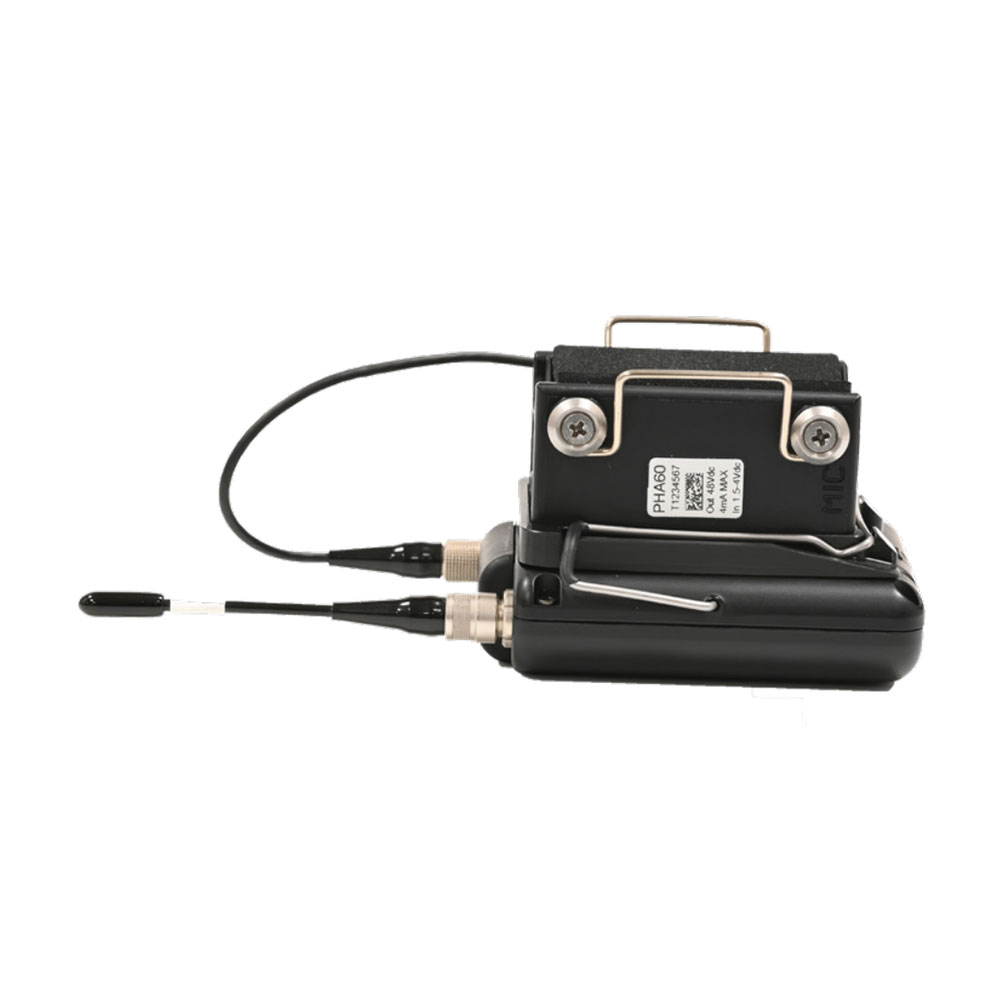

Wisycom PHA60-D 48V Phantom Power Adaptors
Allows for 12V or 48V Phantom adapter with felt hook for easy pole attachment.
This adapter provides the stabilized voltage and a high quality insulation transformer in a small form factor suitable to be plugged directly on the MIC.

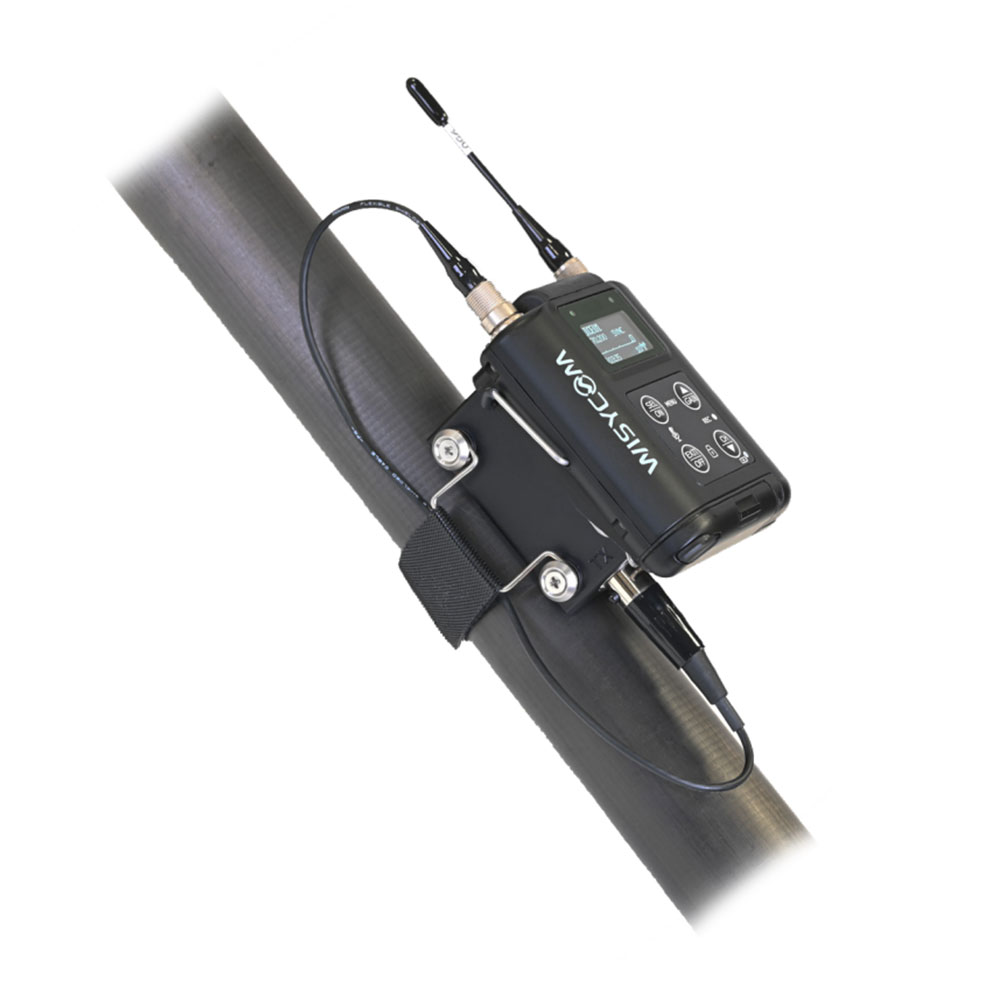

Thanks to the felt hook it allows a stable and safe fixing on poles from 25 to 40 mm. Quick fastening system using the MTP60 belt clip.
Please note this unit is the adaptor only. Please buy the power cable separately.
To select the Phantom Power, set the MTP60 Mic mode:
- PHA60-12 to generate the 12 ± 2V @ 5 mA (set MIC mode PHA60-12 on MTP60), PHA60-D only
- PHA60-48 to generate the 41 ± 2V @ 5 mA (set MIC mode PHA60-48 on MTP60), PHA60 and PHA60-D
Connectors:
- Mini XLR-5M (to the TX)
- Mini XLR-3M (to the MIC)
Download the manual here
